AI-000480
Ground Strap, Flat Nose Clip, Ring Tongue Terminal, 39.4 ", 1 m, BU-122 Series

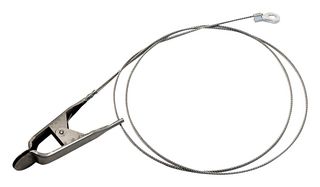

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMUELLER ELECTRIC
Manufacturer Part NoAI-000480
Newark Part No.43AC2163
Product RangeBU-122 Series
Technical Datasheet
23 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $1.300 |
| 100+ | $1.300 |
| 500+ | $1.300 |
| 1000+ | $1.300 |
| 2500+ | $1.300 |
Price for:Each
Minimum: 1
Multiple: 1
$1.30
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMUELLER ELECTRIC
Manufacturer Part NoAI-000480
Newark Part No.43AC2163
Product RangeBU-122 Series
Technical Datasheet
Connector to ConnectorFlat Nose Clip to Ring Tongue Terminal
Connector Type AFlat Nose Clip
Connector Type BRing Tongue Terminal
Cable Length - Imperial39.4"
Cable Length - Metric1m
Jacket Color-
Product RangeBU-122 Series
SVHCNo SVHC (19-Jan-2021)
Product Overview
The AI‐000480 was specifically designed as an industrial grounding cable for painting components.
- Constructed with 1/16” (1.6mm) 304 stainless steel wire rope. 39.4” (1m) in length
- Clip is a BU‐122.
- The flat nose has a dimple in the center to insure good electrical contact even when paint covers the rest of the clip.
- The max jaw opening is .6” (15mm); length is 3.1” (79mm); Height is 1.5” (38mm) and width is .6” (15mm).
- Made from 304 stainless steel for easy cleanup.
- The Ring Terminal has a 5/16” ID (7.9mm) and is crimped on the wire.
- RoHS Compliant
Technical Specifications
Connector to Connector
Flat Nose Clip to Ring Tongue Terminal
Connector Type B
Ring Tongue Terminal
Cable Length - Metric
1m
Product Range
BU-122 Series
Connector Type A
Flat Nose Clip
Cable Length - Imperial
39.4"
Jacket Color
-
SVHC
No SVHC (19-Jan-2021)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (19-Jan-2021)
Download Product Compliance Certificate
Product Compliance Certificate
