TMR1341
TMR Magnetic Sensor, Omnipolar Switch, 1.8 V to 5.5 V, LGA

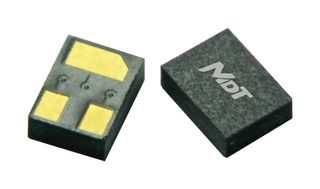

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 4 week(s)
| Quantity | Price |
|---|---|
| 100+ | $1.850 |
| 250+ | $1.690 |
| 500+ | $1.480 |
| 1000+ | $1.360 |
Price for:Each (Supplied on Cut Tape)
Minimum: 100
Multiple: 100
$185.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTI DIMENSION
Manufacturer Part NoTMR1341
Newark Part No.56AC2251
Technical Datasheet
Sensor TypeOmnipolar Switch
Magnetoresistive Sensor TechnologyTunneling Magneto Resistance (TMR)
Magnetoresistive Sensor TypeOmnipolar Switch
Supply Voltage Min1.8V
Supply Voltage Max5.5V
Sensor Case / PackageLGA
Sensor Case StyleLGA
No. of Pins3Pins
Operating Temperature Min-40°C
Operating Temperature Max125°C
Product Range-
MSL-
SVHCTo Be Advised
Technical Specifications
Sensor Type
Omnipolar Switch
Magnetoresistive Sensor Type
Omnipolar Switch
Supply Voltage Max
5.5V
Sensor Case Style
LGA
Operating Temperature Min
-40°C
Product Range
-
SVHC
To Be Advised
Magnetoresistive Sensor Technology
Tunneling Magneto Resistance (TMR)
Supply Voltage Min
1.8V
Sensor Case / Package
LGA
No. of Pins
3Pins
Operating Temperature Max
125°C
MSL
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
