MP013619

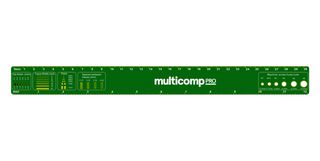

Ruler, PCB, Fiberglass, Green/White Text, 12.15" L x 1.26" W
Image is for illustrative purposes only. Please refer to product description.
Unable to Retrieve Availability Information
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP013619
Newark Part No.85AK6134
Technical Datasheet
Length12.15"
Width1.26"
Graduations-
Tool Body MaterialFiberglass
Product Range-
SVHCTo Be Advised
Product Overview
MP013619 is a green PCB ruler with white characters. It features common surface mount IC package layouts, common surface mount diode and transistor package layouts, common passive component surface mount pad sizes.
- 2 layer board
- Size is 30.87cm × 3.2cm
- Board thickness is 1.6mm (1oz copper thickness, immersion gold)
- Ruler should fit perfectly to determine the size of the screw
Technical Specifications
Length
12.15"
Graduations
-
Product Range
-
Width
1.26"
Tool Body Material
Fiberglass
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
