PSF102-7651-713
PRESSURE SWITCH, SPST-NO, 2.17PSI

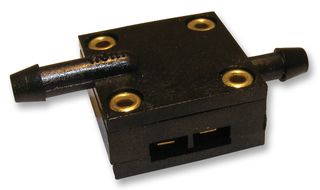

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoPSF102-7651-713
Newark Part No.24R7137
Technical Datasheet
89 In Stock
Need more?
8 Delivery in 1-3 Business Days(US stock)
81 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $96.800 |
| 50+ | $88.000 |
| 100+ | $81.100 |
| 250+ | $74.810 |
| 500+ | $70.090 |
Price for:Each
Minimum: 1
Multiple: 1
$96.80
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoPSF102-7651-713
Newark Part No.24R7137
Technical Datasheet
Pressure Type-
Pressure Port TypeDual Radial Barbed
Pressure Fitting StyleDual Radial Barbed
Operating Pressure Min0.541psi
Operating Pressure Max2.17psi
Contact ConfigurationSPST-NO
Switching Voltage Max30V
Switching Voltage DC Resistive30V
Switching Current Max40mA
Switching Current DC Resistive40mA
Pressure Port Size-
Transducer Connection / TerminationSpade Terminals
Deadband Min-
Deadband Max-
Operating Temperature Min40°F
Operating Temperature Max150°F
Product Range-
SVHCNo SVHC (17-Jan-2023)
Product Overview
The PSF102-7651-713 is a SPST-NO panel/chassis-mount Pressure Switch with quick connect connection, dual radial barbed pressure fitting. It is made of polycarbonate case, polyurethane diaphragm, gold contact points. World Magnetics exclusive Design Flex™ feature allows you to quickly custom design a proven pressure, vacuum or differential switch for your application.
- Air, compatible fluids on high port side switching medium
- High resolution/high accuracy field adjustment mechanism
- Miniature size, lightweight
- More than 20 million cycles mechanical life
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial, Factory Automation, Sensing & Instrumentation, Signalling
Technical Specifications
Pressure Type
-
Pressure Fitting Style
Dual Radial Barbed
Operating Pressure Max
2.17psi
Switching Voltage Max
30V
Switching Current Max
40mA
Pressure Port Size
-
Deadband Min
-
Operating Temperature Min
40°F
Product Range
-
Pressure Port Type
Dual Radial Barbed
Operating Pressure Min
0.541psi
Contact Configuration
SPST-NO
Switching Voltage DC Resistive
30V
Switching Current DC Resistive
40mA
Transducer Connection / Termination
Spade Terminals
Deadband Max
-
Operating Temperature Max
150°F
SVHC
No SVHC (17-Jan-2023)
