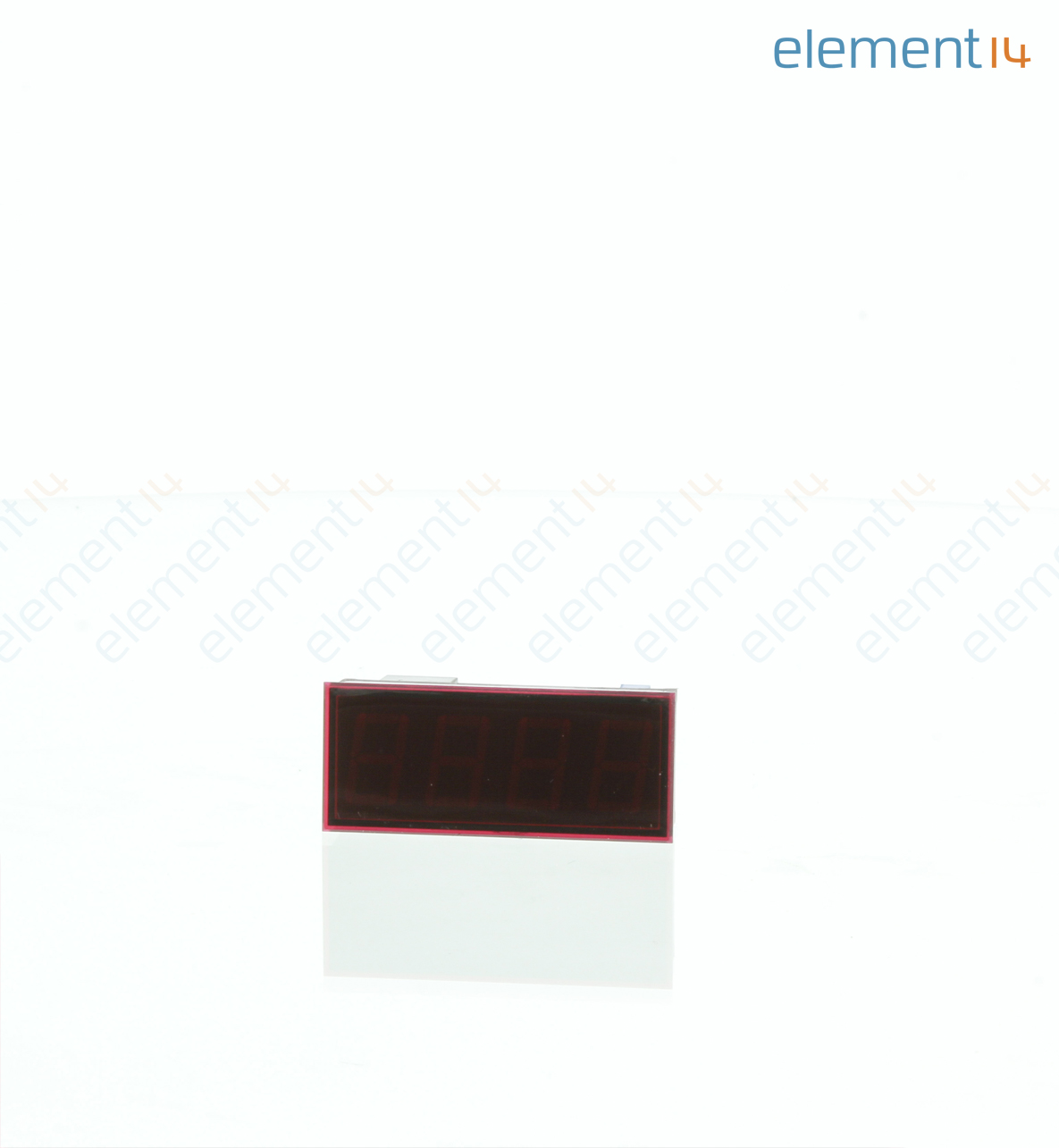

DMS-30PC-4/20S-24RS-I-C

The DMS-30PC-4/20S-24RS-I-C is a 3-1/2-digit standard-intensity red LED Panel Meter with isolated supply. It offers an outstanding combination of electrical performance, display readability, ease-of-use and long-term reliability. This meter is constructed using Murata Power Solutions super-reliable, field-proven epoxy-encapsulated DMS-30PC digital voltmeter. The decimal point and range-change settings are made on a gold-plated, vibration-resistant, DIP switch and there is no cumbersome solder gap or jumpers to contend with connections to the current loop and the power source are both made on a rugged, 4-position, screw-type terminal block. It is user-friendly design accommodates virtually hundreds of different input-current/output-reading combinations. This eliminates the majority of requirements for more costly, long-lead-time, factory "specials" especially in applications requiring several different-range meter.

• Entire assembly utilizes 100% soldered connections
• Secure screw fasteners and an EPDM rubber gasket
• Requiring moisture and dust resistance
• DIP-switch selectable range and decimal points
• Hundreds of different input/readout combinations
• 100Ω Impedance

Applications

Industrial, Metering, Test & Measurement
