HB15CKW01-B

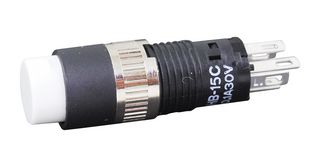

Pushbutton Switch, HB Series, 8 mm, SPDT, On-(On), Round, White
Image is for illustrative purposes only. Please refer to product description.
ManufacturerNKK SWITCHES
Manufacturer Part NoHB15CKW01-BCopy
Newark Part No.09X9853
Product RangeHB Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 12 week(s)
| Quantity | Price |
|---|---|
| 1+ | $29.940 |
| 5+ | $28.050 |
| 10+ | $25.960 |
| 25+ | $23.870 |
| 50+ | $21.770 |
| 100+ | $19.480 |
| 250+ | $17.700 |
Price for:Each
Minimum: 1
Multiple: 1
$29.94
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerNKK SWITCHES
Manufacturer Part NoHB15CKW01-BCopy
Newark Part No.09X9853
Product RangeHB Series
Technical Datasheet
Pushbutton Switch TypeStandard
Product RangeHB Series
Panel Cutout Diameter8mm
Contact Voltage AC Nom30V
Contact ConfigurationSPDT
Switch OperationOn-(On)
Contact Current Max100mA
Pushbutton Actuator StyleRound
Actuator / Cap ColourWhite
Contact Current AC Max100mA
Contact Voltage VAC30V
Contact Current DC Max100mA
Contact Voltage VDC30V
Switch MountingPanel Mount
Switch TerminalsSolder Lug
Illumination ColorNon Illuminated
Panel Cutout (H x W)-
SVHCNo SVHC (15-Jan-2018)
Technical Specifications
Pushbutton Switch Type
Standard
Panel Cutout Diameter
8mm
Contact Configuration
SPDT
Contact Current Max
100mA
Actuator / Cap Colour
White
Contact Voltage VAC
30V
Contact Voltage VDC
30V
Switch Terminals
Solder Lug
Panel Cutout (H x W)
-
Product Range
HB Series
Contact Voltage AC Nom
30V
Switch Operation
On-(On)
Pushbutton Actuator Style
Round
Contact Current AC Max
100mA
Contact Current DC Max
100mA
Switch Mounting
Panel Mount
Illumination Color
Non Illuminated
SVHC
No SVHC (15-Jan-2018)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
