107-55-3
Extraction Tool, Card Edge Connectors, Calmark 107 Series

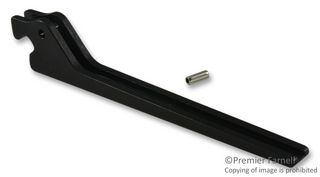

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNVENT SCHROFF
Manufacturer Part No107-55-3
Newark Part No.72W0980
Product RangeCalmark 107 Series
Your Part Number
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 9 week(s)
| Quantity | Price |
|---|---|
| 10+ | $25.930 |
Price for:Each
Minimum: 100
Multiple: 1
$2,593.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerNVENT SCHROFF
Manufacturer Part No107-55-3
Newark Part No.72W0980
Product RangeCalmark 107 Series
Technical Datasheet
For Use WithCard Edge Connectors
Product RangeCalmark 107 Series
SVHCNo SVHC (15-Jun-2015)
Product Overview
The 107-55-3 is a black aluminium Inserter/Extractor Tool for safe and easy insertion and extraction of printed circuit boards in the most severe applications. It offers ultra-strong lever action design overcomes insertion and extraction forces of highest possible limits.
- Actuates from a simple U channel form
- Mounting detail on card retrofits other industry standards
- Generous area for identification markings
- Strong and ultra-strong lever action overcome high insertion and extraction forces
- 2.4mm Board thickness
- 8:1 Mechanical advantage
Applications
Maintenance & Repair
Technical Specifications
For Use With
Card Edge Connectors
SVHC
No SVHC (15-Jun-2015)
Product Range
Calmark 107 Series
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jun-2015)
