107-73-3

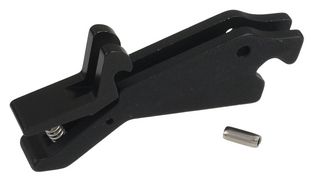

Extraction Tool, Card Edge Connectors, Calmark 107 Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerNVENT SCHROFF
Manufacturer Part No107-73-3
Newark Part No.72W0982
Product RangeCalmark 107 Series
Technical Datasheet
30 In Stock
100 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $46.210 |
| 10+ | $41.190 |
| 25+ | $39.960 |
| 50+ | $37.670 |
| 100+ | $35.080 |
| 250+ | $31.010 |
| 500+ | $27.100 |
Price for:Each
Minimum: 1
Multiple: 1
$46.21
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNVENT SCHROFF
Manufacturer Part No107-73-3
Newark Part No.72W0982
Product RangeCalmark 107 Series
Technical Datasheet
For Use WithCard Edge Connectors
Product RangeCalmark 107 Series
SVHCNo SVHC (15-Jun-2015)
Product Overview
The 107-73-3 is a black aluminium Inserter/Extractor Tool for safe and easy insertion and extraction of printed circuit boards in the most severe applications. It offers ultra-strong lever action design overcomes insertion and extraction forces of highest possible limits. It also offers a positive locking feature.
- Actuates from a simple U channel form
- Mounting detail on card retrofits other industry standards
- Generous area for identification markings
- Strong and ultra-strong lever action overcome high insertion and extraction forces
- 2.4mm Board thickness
- 4.2:1 Mechanical advantage
Applications
Maintenance & Repair
Technical Specifications
For Use With
Card Edge Connectors
SVHC
No SVHC (15-Jun-2015)
Product Range
Calmark 107 Series
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jun-2015)
