107
Extraction Tool, Card Edge Connectors, Calmark 107 Series

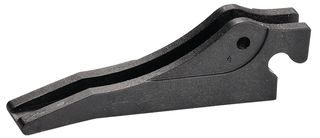

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNVENT SCHROFF
Manufacturer Part No107
Newark Part No.46W1489
Product RangeCalmark 107 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
| Quantity | Price |
|---|---|
| 500+ | $2.090 |
| 1000+ | $1.950 |
Price for:Each
Minimum: 603
Multiple: 1
$1,260.27
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNVENT SCHROFF
Manufacturer Part No107
Newark Part No.46W1489
Product RangeCalmark 107 Series
Technical Datasheet
For Use WithCard Edge Connectors
Product RangeCalmark 107 Series
SVHCNo SVHC (15-Jun-2015)
Product Overview
The 107 is an Aluminum Inserter/Extractor for safe and easy insertion and extraction of printed circuit boards in the most severe applications. Ultra strong lever action design overcomes insertion and extraction forces of highest possible limits.
- Provides insertion and extraction assistance
- Designed for sheet metal chassis applications
- Molded from nylon (type 6) or 10% graphite filled polycarbonate (type 6/6)
- PCB board thickness 1.6 mm (.063 in)
- Mechanical advantage 4.5 : 1
- Ample gripping surface / area for hot stamping
Applications
Maintenance & Repair
Technical Specifications
For Use With
Card Edge Connectors
SVHC
No SVHC (15-Jun-2015)
Product Range
Calmark 107 Series
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jun-2015)
