OM13085UL

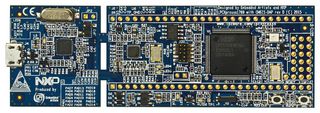

LPCXpresso board for LPC1769 with CMSIS DAP Probe, 32-Bit

OM13085UL - LPCXpresso board for LPC1769 with CMSIS DAP Probe, 32-Bit

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
NXP NXP
Manufacturer Part No:
OM13085UL
Newark Part No.:
77Y7686
Technical Datasheet:
OM13085UL   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
NXP

:
32bit

:
LPC1700

:
ARM

:
Cortex-M3

:
LPC1769

:
Eval Board LPC1769 LPCXpresso, CMSIS-DAP Compatible Debug Probe, Connector

:
LPCXpresso Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

Product Overview

The OM13085 is a pioneered by NXP and Embedded Artists, the LPCXpresso™ Development Platform includes LPCXpresso target boards to get you up and running quickly. Designed for simple, rapid prototyping and evaluation, LPCXpresso™ development boards work with the LPCXpresso IDE and other industry leading partner tool chains. LPCXpresso™ is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production. This LPCXpresso™ board is populated with the LPC1769 to demonstrate and enable evaluate of the features of the LPC1700 product series. The board includes an on-board, CMSIS-DAP compatible debug probe as well as a connector for use with 3rd party debug probes.
  • LPC1769 Cortex-M3 based microcontroller
  • Integrated CMSIS-DAP debug probe
  • Debug probe section of the board can be snapped off to reduce board size
  • 10-pin SWD connector for use with an external debug probe
  • Ethernet 10/100 PHY
  • Reset and ISP boot mode buttons
  • Tricolor LED
  • LPCXpresso/mbed debug expansion connectors

Applications

Test & Measurement, Industrial

Best Seller

1 In stock Need more?

Delivery in 2-4 business days
(UK Stock)

$37.01

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
