TWR-K53N512
Tower System Module, Kinetis K53, OSJTAG, Cortex-M4, Touch/SLCD Tower PI Socket

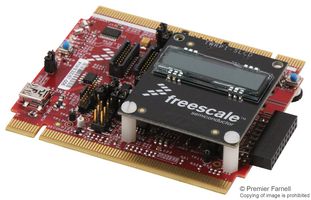

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
| Quantity | Price |
|---|---|
| 1+ | $265.220 |
Price for:Each
Minimum: 1
Multiple: 1
$265.22
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNXP
Manufacturer Part NoTWR-K53N512
Newark Part No.45T2776
Technical Datasheet
Silicon ManufacturerNXP
No. of Bits32bit
Silicon Family NameKinetis - K50
Core ArchitectureARM
Core Sub-ArchitectureCortex-M4
Silicon Core NumberMK53DN512CMD10
Kit ContentsBoard
Product Range-
Product Overview
The TWR-K53N512 is a development tool for the K53 family of Kinetis MCUs. This kit is part of the NXP tower system, a modular, reusable development platform that allows designers to get to market faster with packaged evaluation boards, tools and runtime software. The tower system module can operate as a standalone debug tool and provides an interface to the medical expansion connector and TWRPI-SLCD modules.
- MK53DN512CMD10 MAPBGA 144pins MCU
- S08JM60 based open source JTAG (JTAG) circuit
- User controlled status LEDs
- Capacitive touch pad sensors and mechanical push buttons
- Medical expansion connector
- SD card slot
- Compatible with TWR-SER (Ethernet, USB connectivity)
- MMA7660 Accelerometer
- This board contains Kinetis K50 MK53N512CMD100, an energy efficient product solution
Applications
Medical, Portable Devices
Contents
TWR-K53N512 board, DVD with IDE software, training materials and collateral, Quick Start Guide document.
Technical Specifications
Silicon Manufacturer
NXP
Silicon Family Name
Kinetis - K50
Core Sub-Architecture
Cortex-M4
Kit Contents
Board
SVHC
No SVHC (27-Jun-2024)
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
MK53DN512CMD10
Product Range
-
Associated Products
6 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
