TWR-MCF51JG

TWR-MCF51JG is a ColdFire+ MCF51JX Tower® system module. This development module compatible with the Tower® System. It can function as a standalone, low-cost platform for the evaluation of the ColdFire+®+ MCF51JG MCU devices. The TWR-MCF51JG controller module features the MCF51JG, a ColdFire+ 32-bit MCU built on the version 1 (V1) ColdFire® core and enabled by innovative 90nm thin film storage (TFS) flash process technology with FlexMemory. The MCF51Jx families offer a rich combination of additive peripherals including USB, hardware encryption, and more. The TWR-MCF51JG module can also be combined with other Tower System peripheral modules to create development platforms for a wide variety of applications.

• MCF51JG256 ColdFire®+ MCU (50MHz, 256KB flash, 64KB RAM, 5mm x 5mm 44-MAPLGA package)
• Dual role USB interface w/ Micro-AB USB connector and general-purpose Tower® plug-in (TWRPI) socket
• On-board debug circuit (OSBDM) with virtual serial port
• Serial audio interface (SAI) header

Contents

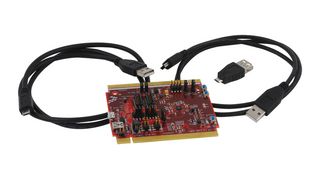

TWR-MCF51JG board assembly, 3ft A to mini-B USB cable for debug interface and power, 3ft A to micro-B USB cable for MCF51JG USB interface, Micro-A to A adapter for MCF51JG USB host applications, Quick start guide.
