PFE5K1R00E
Resistor, 1 ohm, Powr-Rib PFE Series, 1.089 kW, ± 10%, Solder Lug

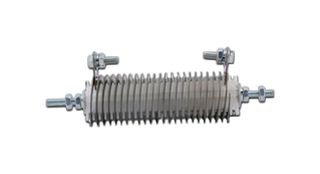

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOHMITE
Manufacturer Part NoPFE5K1R00E
Newark Part No.64K5477
Product RangePowr-Rib PFE Series
Technical Datasheet
No Longer Available
Product Information
ManufacturerOHMITE
Manufacturer Part NoPFE5K1R00E
Newark Part No.64K5477
Product RangePowr-Rib PFE Series
Technical Datasheet
Resistance1ohm
Product RangePowr-Rib PFE Series
Power Rating1.089kW
Resistance Tolerance± 10%
Resistor TerminalsSolder Lug
Voltage Rating-
Resistor TechnologyWirewound
Temperature Coefficient± 500ppm/°C
Resistor TypeHigh Power
Resistor MountingPanel Mount
Product Length412.75mm
Product Width-
Product Height-
Operating Temperature Min-
Operating Temperature Max-
Qualification-
Technical Specifications
Resistance
1ohm
Power Rating
1.089kW
Resistor Terminals
Solder Lug
Resistor Technology
Wirewound
Resistor Type
High Power
Product Length
412.75mm
Product Height
-
Operating Temperature Max
-
SVHC
No SVHC (27-Jun-2024)
Product Range
Powr-Rib PFE Series
Resistance Tolerance
± 10%
Voltage Rating
-
Temperature Coefficient
± 500ppm/°C
Resistor Mounting
Panel Mount
Product Width
-
Operating Temperature Min
-
Qualification
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
