D3M-01K3-3
Microswitch, Subminiature, SPST-NO, Quick Connect

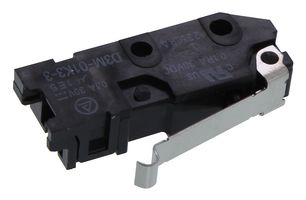

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMRON ELECTRONIC COMPONENTS
Manufacturer Part NoD3M-01K3-3
Newark Part No.95B1594
Technical Datasheet
560 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1.530 |
| 10+ | $1.530 |
| 25+ | $1.530 |
| 50+ | $1.530 |
| 100+ | $1.530 |
| 250+ | $1.530 |
| 500+ | $1.530 |
Price for:Each
Minimum: 1
Multiple: 1
$1.53
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMRON ELECTRONIC COMPONENTS
Manufacturer Part NoD3M-01K3-3
Newark Part No.95B1594
Technical Datasheet
Microswitch TypeSubminiature
Microswitch Actuator-
Contact ConfigurationSPST-NO
Switch TerminalsQuick Connect
Contact Current Max-
Contact Voltage DC Nom-
Product Range-
Contact Voltage AC Nom-
Operating Force Max0.5N
SVHCTo Be Advised
Product Overview
The D3M-01K3-3 is a single-pole single-throw (SPST) NO subminiature Basic Switch with gold alloy crossbar contacts and simulated roller lever actuator. This D3M series safety interlock switch features 0.5mm standard contact gap, quick-connect terminals simplify wiring and reduce production step and horizontal layout of terminals saves mounting space. The external actuator mounts in either of two directions to increase switch mounting flexibility.
- 100MΩ at 500VDC Minimum insulation resistance
- 100mΩ (initial value) Maximum contact resistance
- 1000m/s² Maximum durability shock resistance
- 300m/s² Maximum malfunction shock resistance
- IP40 Protection rating
Applications
Industrial
Technical Specifications
Microswitch Type
Subminiature
Contact Configuration
SPST-NO
Contact Current Max
-
Product Range
-
Operating Force Max
0.5N
Microswitch Actuator
-
Switch Terminals
Quick Connect
Contact Voltage DC Nom
-
Contact Voltage AC Nom
-
SVHC
To Be Advised
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
