D4CC-1002
Limit Switch, Miniature, IP67, Roller Plunger, SPDT, 1 A, 125 V, 11.77 N, D4CC Series

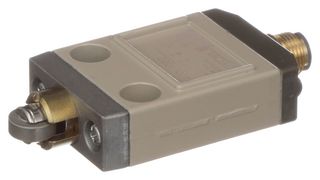

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMRON INDUSTRIAL AUTOMATION
Manufacturer Part NoD4CC-1002
Newark Part No.37B9877
Product RangeD4CC Series
Technical Datasheet
38 In Stock
Ship in 2-3 days(Supplier Direct Ship)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $315.100 |
| 5+ | $294.100 |
| 10+ | $277.300 |
| 25+ | $259.090 |
| 50+ | $245.070 |
| 100+ | $232.480 |
Price for:Each
Minimum: 1
Multiple: 1
$315.10
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerOMRON INDUSTRIAL AUTOMATION
Manufacturer Part NoD4CC-1002
Newark Part No.37B9877
Product RangeD4CC Series
Technical Datasheet
Limit Switch ActuatorRoller Plunger
Contact ConfigurationSPDT
Contact Current AC Max1A
Contact Voltage AC Max125V
Operating Force Max11.77N
Product RangeD4CC Series
Contact Current DC Max-
Contact Voltage DC Max-
SVHCTo Be Advised
Product Overview
D4CC-1002 is a D4CC series miniature limit switch.
- Cable connectors for easy switch replacement
- Triple-seal construction to provide IEC IP67 degree of protection
- Approved by UL and CSA
- 1A at 125V AC rated current
- Roller plunger actuator
- Rated frequency: 50/60Hz
- Insulation resistance: 100Mohm min (at 500V DC)
- Contact resistance (initial): 100mohm maximum
- Ambient operating temperature: -10°C to +70°C (with no icing)
Technical Specifications
Limit Switch Actuator
Roller Plunger
Contact Current AC Max
1A
Operating Force Max
11.77N
Contact Current DC Max
-
SVHC
To Be Advised
Contact Configuration
SPDT
Contact Voltage AC Max
125V
Product Range
D4CC Series
Contact Voltage DC Max
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
