Microswitch, Subminiature, Roller Plunger, SPDT, Screw, 100 mA, 250 VDC

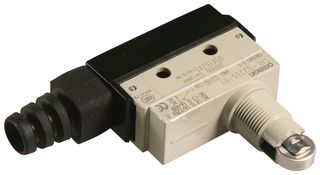

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMRON INDUSTRIAL AUTOMATION
Manufacturer Part NoSHL-Q-2255-01
Newark Part No.18M7703
Product RangeSHL Series
Technical Datasheet
9 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $89.290 |
| 5+ | $89.290 |
| 10+ | $89.290 |
Price for:Each
Minimum: 1
Multiple: 1
$89.29
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMRON INDUSTRIAL AUTOMATION
Manufacturer Part NoSHL-Q-2255-01
Newark Part No.18M7703
Product RangeSHL Series
Technical Datasheet
Microswitch TypeSubminiature
Microswitch ActuatorRoller Plunger
Contact ConfigurationSPDT
Switch TerminalsScrew
Contact Current Max100mA
Contact Voltage DC Nom250VDC
Product RangeSHL Series
Contact Voltage AC Nom480VAC
Operating Force Max9.81N
SVHCTo Be Advised
Product Overview
The SHL-Q-2255-01 is a single-pole double-throw (SPDT) subminiature enclosed Limit Switch feature high sealing property. This SHL series compact general-purpose horizontal switch comes with a durable coil spring in a tough, high precision case and panel mount roller plunger. The terminal protective cover can be switched to wire cable from either the left or right.
- Sealing characteristics that meet IEC IP67 Protection rating
- 1000m/s² Maximum destruction shock resistance
- 300m/s² Maximum malfunction shock resistance
- 500000 operations Minimum electrical durability
- 10000000 operations Minimum Mechanical durability
- 100MΩ at 500VDC Minimum insulation resistance
- 15Ω Maximum initial contact resistance
- Class II protection against electric shock
Applications
Industrial
Technical Specifications
Microswitch Type
Subminiature
Contact Configuration
SPDT
Contact Current Max
100mA
Product Range
SHL Series
Operating Force Max
9.81N
Microswitch Actuator
Roller Plunger
Switch Terminals
Screw
Contact Voltage DC Nom
250VDC
Contact Voltage AC Nom
480VAC
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
