2N6487G
Bipolar (BJT) Single Transistor, General Purpose, NPN, 60 V, 15 A, 1.8 W, TO-220, Through Hole

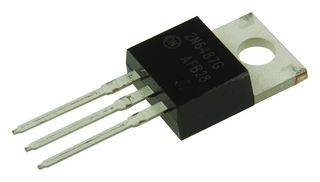

Image is for illustrative purposes only. Please refer to product description.
ManufacturerONSEMI
Manufacturer Part No2N6487G
Newark Part No.26K5324
Product Range2NXXXX Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 15 week(s)
| Quantity | Price |
|---|---|
| 500+ | $0.908 |
| 1000+ | $0.846 |
| 2500+ | $0.791 |
| 10000+ | $0.708 |
Price for:Each
Minimum: 550
Multiple: 50
$499.40
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerONSEMI
Manufacturer Part No2N6487G
Newark Part No.26K5324
Product Range2NXXXX Series
Technical Datasheet
Transistor PolarityNPN
Collector Emitter Voltage V(br)ceo60V
Collector Emitter Voltage Max60V
Continuous Collector Current15A
Power Dissipation Pd1.8W
Power Dissipation1.8W
DC Collector Current15A
DC Current Gain hFE5hFE
Transistor MountingThrough Hole
No. of Pins3Pins
Transistor Case StyleTO-220
Transition Frequency5MHz
DC Current Gain hFE Min5hFE
Operating Temperature Max150°C
Qualification-
Product Range2NXXXX Series
SVHCNo SVHC (15-Jan-2018)
Technical Specifications
Transistor Polarity
NPN
Collector Emitter Voltage Max
60V
Power Dissipation Pd
1.8W
DC Collector Current
15A
Transistor Mounting
Through Hole
Transistor Case Style
TO-220
DC Current Gain hFE Min
5hFE
Qualification
-
SVHC
No SVHC (15-Jan-2018)
Collector Emitter Voltage V(br)ceo
60V
Continuous Collector Current
15A
Power Dissipation
1.8W
DC Current Gain hFE
5hFE
No. of Pins
3Pins
Transition Frequency
5MHz
Operating Temperature Max
150°C
Product Range
2NXXXX Series
Technical Docs (3)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
