MC7905CTG
Fixed LDO Voltage Regulator, 7905, -35V to -10V, 1.3V Dropout, -5Vout, 1Aout, TO-220-3

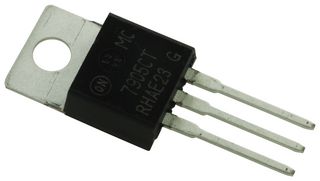

Image is for illustrative purposes only. Please refer to product description.
ManufacturerONSEMI
Manufacturer Part NoMC7905CTG
Newark Part No.98H0732
Product Range-5V 1A LDO Voltage Regulators
Technical Datasheet
460 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.478 |
| 10+ | $0.439 |
| 100+ | $0.405 |
| 500+ | $0.405 |
| 1000+ | $0.405 |
| 2500+ | $0.377 |
| 10000+ | $0.376 |
Price for:Each
Minimum: 1
Multiple: 1
$0.48
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerONSEMI
Manufacturer Part NoMC7905CTG
Newark Part No.98H0732
Product Range-5V 1A LDO Voltage Regulators
Technical Datasheet
Output TypeFixed
Input Voltage Min-35V
Input Voltage Max-10V
Fixed Output Voltage Nom-5V
No. of Outputs1Outputs
Output Voltage - Nom-5V
Adjustable Output Voltage Min-
Output Voltage Nom-5V
Adjustable Output Voltage Max-
Output Voltage Min-
Output Current1A
Output Voltage Max-
Dropout Voltage Vdo1.3V
PolarityNegative Output
Max Output Current1A
LDO Regulator Case StyleTO-220
Output Current Max1A
Dropout Voltage Typ @ Current1.3V
Dropout Voltage - Typ @ Current1.3V
IC MountingThrough Hole
IC Case / PackageTO-220
No. of Pins3Pins
Operating Temperature Min0°C
Operating Temperature Max125°C
Product Range-5V 1A LDO Voltage Regulators
MSL-
SVHCLead
Product Overview
The MC7905CTG is a low dropout fixed output Negative Voltage Regulator with LDO regulator case. The same seven-voltage and in addition one extra voltage option commonly employed in MECL systems. This regulator employs current limiting, thermal shutdown and safe-area compensation - making them remarkably rugged under most operating conditions. With adequate heat-sinking it can deliver output currents in excess of 1A.
