MD17/73

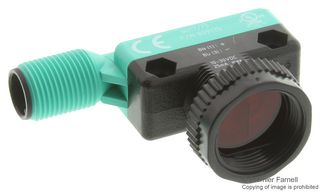

Photoelectric Sensor, ML17 Series, Tru-Vue, Receiver, Through Beam, 20 m, NPN / PNP, 10 to 30 Vdc
Image is for illustrative purposes only. Please refer to product description.
4 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $108.380 |
| 10+ | $102.160 |
| 25+ | $100.080 |
| 50+ | $97.990 |
| 100+ | $95.910 |
Price for:Each
Minimum: 1
Multiple: 1
$108.38
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPEPPERL+FUCHS
Manufacturer Part NoMD17/73
Newark Part No.70K3420
Technical Datasheet
Sensor TypePhotoelectric Sensors
Sensing Distance Max15m
Sensing MethodThrough Beam
Output Type-
Product Range-
Connection MethodM12 Connector
Supply Voltage Min10VDC
Supply Voltage Max30VDC
Light Source950nm Infrared LED
Qualification-
IP RatingIP67
Operating Temperature Min-20°C
Operating Temperature Max55°C
SVHCNo SVHC (07-Jul-2017)
Product Overview
The MD17/73 is a Thru-beam Sensor which offers diverse connection and installation options, which means that it can adapt to the most varied automation tasks. In addition to the usual fitting method using M4 screws, these sensors can also be installed by means of M18 threaded insert. The device is equipped with a green Power On display and a yellow function display. These displays are arranged in such a way that they are clearly visible from different directions.
- 0 to 15m Effective detection range
- 20m Threshold detection range
- 2 Push-pull outputs
- Short-circuit protected, reverse polarity protected, overvoltage protected signal output
- 150Hz Switching frequency
- Light/dark on switching type
- IP67 Protection rating
- M12 x 1, 4-pin connector connection
- 360° High visibility LEDs
- Time-saving mounting with quick clamp system
Applications
Sensing & Instrumentation
Technical Specifications
Sensor Type
Photoelectric Sensors
Sensing Method
Through Beam
Product Range
-
Supply Voltage Min
10VDC
Light Source
950nm Infrared LED
IP Rating
IP67
Operating Temperature Max
55°C
Sensing Distance Max
15m
Output Type
-
Connection Method
M12 Connector
Supply Voltage Max
30VDC
Qualification
-
Operating Temperature Min
-20°C
SVHC
No SVHC (07-Jul-2017)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Jul-2017)
