PFL12T
Metal Enclosure, PCB Mounting Frame, Small, Steel, 16 mm, 45 mm, 45 mm

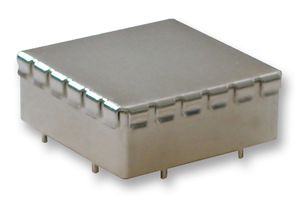

Image is for illustrative purposes only. Please refer to product description.
268 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $25.520 |
| 5+ | $23.330 |
| 10+ | $22.870 |
| 25+ | $22.390 |
| 50+ | $21.280 |
| 100+ | $19.280 |
| 250+ | $17.520 |
Price for:Each
Minimum: 1
Multiple: 1
$25.52
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerPERANCEA
Manufacturer Part NoPFL12T
Newark Part No.24M1993
Technical Datasheet
Enclosure TypePCB Box
Enclosure MaterialSteel
External Height - Metric16mm
External Width - Metric45mm
External Depth - Metric45mm
IP Rating-
IP Rating-
Body ColorUnfinished
NEMA Rating-
External Height - Imperial0.63"
External Width - Imperial1.77"
External Depth - Imperial1.77"
Product Range-
SVHCNo SVHC (27-Jun-2024)
ConfigurableNo
Product Overview
The PFL series enclosures from Perancea are PCB mounting frames which are ideally suited for board level screening application. These PCB frames are used where excellent RFI/EMI attenuation and accessibility is of major concern.
- Removable fingered lid provide easy access whilst maintaining good attenuation
- PCB mounting pins
- Optional locking Pins
- Internal dividers are optional for discrete screening within the frame
- Available in different sizes based on ordering
- Copper, brass, tinplate, nickel finishes are available
- Bright steel construction to BS1449 Pt.1 CR4
- Quick, efficient and cost effective specific board level screening
Applications
Industrial
Technical Specifications
Enclosure Type
PCB Box
External Height - Metric
16mm
External Depth - Metric
45mm
IP Rating
-
NEMA Rating
-
External Width - Imperial
1.77"
Product Range
-
Configurable
No
Enclosure Material
Steel
External Width - Metric
45mm
IP Rating
-
Body Color
Unfinished
External Height - Imperial
0.63"
External Depth - Imperial
1.77"
SVHC
No SVHC (27-Jun-2024)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
