2966197

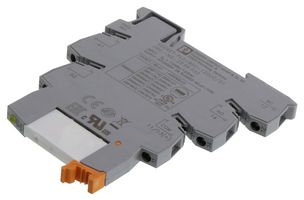

Power Relay, SPDT, 120 VAC, 6 A, PLC Series, DIN Rail, Non Latching
Image is for illustrative purposes only. Please refer to product description.
ManufacturerPHOENIX CONTACT
Manufacturer Part No2966197
Newark Part No.89W0419
Product RangePLC
Also Known AsPLC-RSC-120UC/21
Technical Datasheet
1,444 In Stock
Need more?
1356 Delivery in 1-3 Business Days(US stock)
88 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $25.250 |
| 10+ | $25.250 |
| 50+ | $25.250 |
| 100+ | $23.150 |
| 250+ | $23.150 |
| 500+ | $23.150 |
Price for:Each
Minimum: 1
Multiple: 1
$25.25
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPHOENIX CONTACT
Manufacturer Part No2966197
Newark Part No.89W0419
Product RangePLC
Also Known AsPLC-RSC-120UC/21
Technical Datasheet
Contact ConfigurationSPDT
Coil Voltage120VAC
Contact Current6A
Product RangePLC
Relay MountingSocket
Coil TypeNon Latching
Contact Voltage VAC250VAC
Relay TerminalsQuick Connect
Relay TypeInterface
Contact Voltage VDC250VDC
Contact MaterialSilver Tin Oxide
Coil Resistance-
SVHCHexahydromethylphthalic anhydride [1], Hexahydro-4-methylphthalic anhydride [2], Hexahydro-1-methylphthalic anhydride[3] (21-Jan-2025)
Product Overview
2966197 is a PLC interface relay with SPDT silver tin oxide contact, non latching coil, DIN Rail mount, screw connection. This PLC-series features slim design, efficient connection to system cabling using V8 adapter and safe isolation according to DIN EN 50178 between coil and contact. Integrated input circuit and interference suppression circuit.
- 0.42W power dissipation
- Functional plug-in bridges
- Yellow LED operating voltage display
- Bridge rectifier protective circuit
- UL94V-0 Flammability rating
Technical Specifications
Contact Configuration
SPDT
Contact Current
6A
Relay Mounting
Socket
Contact Voltage VAC
250VAC
Relay Type
Interface
Contact Material
Silver Tin Oxide
SVHC
Hexahydromethylphthalic anhydride [1], Hexahydro-4-methylphthalic anhydride [2], Hexahydro-1-methylphthalic anhydride[3] (21-Jan-2025)
Coil Voltage
120VAC
Product Range
PLC
Coil Type
Non Latching
Relay Terminals
Quick Connect
Contact Voltage VDC
250VDC
Coil Resistance
-
Technical Docs (3)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Hexahydromethylphthalic anhydride [1], Hexahydro-4-methylphthalic anhydride [2], Hexahydro-1-methylphthalic anhydride[3] (21-Jan-2025)
