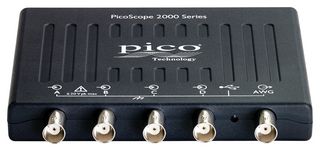

PICOSCOPE 2405A

This PicoScope 2000 series is a general purpose pocket-size PC oscilloscope. The A versions provide the lowest cost 2 & 4 channel models, whereas the B versions offer deep memory, higher bandwidths, and MSO models which add 16 digital channels. All models include a built-in, easy to use, Arbitrary Waveform Generator, and a Spectrum Analyzer mode to view signals in the frequency domain.The PicoScope software provides advanced maths, filters, mask testing, complex triggers, automated measurements, and resolution enhancement. Also standard with the downloadable software are a wide range of serial bus decodes, including RS232/422/485, CAN, I2C, SPI and many more.

• USB2 connected and powered
• Full-feature oscilloscope
• Arbitrary Waveform Generator standard
• Serial Bus Decodes standard
• Spectrum Analyser mode standard
• Tested to meet EN61326-1:2013 and FCC Part 15 subpart B
• Overvoltage protection of ±10V
• Dimension of 142mm x 92mm x 18.8mm
• Operating temperature range from 0°C to +50°C

Applications

Test & Measurement

Contents

PicoScope 2405A, TA375 One 100 MHz Passive Probe Per Channel 1:1, 10:1 Switchable, BNC, TA207 USB2 Cable, 1.2m, Quick Start Guide

Notes

Software and user manuals are available from: https://www.picotech.com/downloads.
