3957

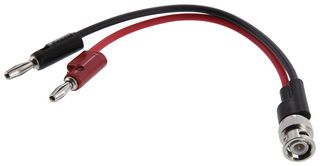

Test Lead, BNC Plug to 4mm Banana Plugs x 2, 60 V, 136.52 mm
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $40.860 |
| 10+ | $38.770 |
| 50+ | $36.280 |
| 100+ | $35.030 |
| 250+ | $33.780 |
| 500+ | $32.530 |
| 1000+ | $31.700 |
Price for:Each
Minimum: 1
Multiple: 1
$40.86
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPOMONA
Manufacturer Part No3957
Newark Part No.94F1581
Technical Datasheet
BNC Connector TypeBNC Plug
Test Connector Type B4mm Stackable Banana Plugs x 2
Lead Length - Imperial5.4"
Lead Length - Metric137mm
Insulator ColourBlack, Red
Current Rating-
Voltage Rating60VDC
Product Range-
SVHCNo SVHC (15-Jun-2015)
Product Overview
- Converts BNC (female) cable to stackable banana plugs
- Moulded directly to the wire for pull strength durability and dust/moisture resistance
- BNC dielectric if PTFE for superior temperature performance
- BNC centre contact is gold plated for corrosion and environmental resistance
- Overall length is 180mm
- 500V RMS
Technical Specifications
BNC Connector Type
BNC Plug
Lead Length - Imperial
5.4"
Insulator Colour
Black, Red
Voltage Rating
60VDC
SVHC
No SVHC (15-Jun-2015)
Test Connector Type B
4mm Stackable Banana Plugs x 2
Lead Length - Metric
137mm
Current Rating
-
Product Range
-
Technical Docs (1)
Alternatives for 3957
1 Product Found
Associated Products
7 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (15-Jun-2015)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
