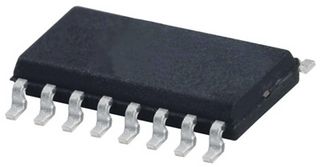

                      LYT3324D-TL

                      LED Driver, AC / DC, 124 kHz, SOIC-16, -40 to 150 °C, SMD, Boost/Buck/Buck-Boost/Flyback, 185-265 V

                      POWER INTEGRATIONS LYT3324D-TL
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerPOWER INTEGRATIONS
                      Manufacturer Part NoLYT3324D-TL
                      Newark Part No.97Y9319
                      Product RangeLYTSwitch-3 Series
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      2,379 In Stock

                      Need more?

                      Delivery in 2-4 Business Days(UK stock)
                      Order before 9pm EST standard shipping
                      QuantityPrice
                      1+$1.810
                      Price for:Each (Supplied on Cut Tape)
                      Minimum: 1
                      Multiple: 1
                      $1.81
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerPOWER INTEGRATIONS
                      Manufacturer Part NoLYT3324D-TL
                      Newark Part No.97Y9319
                      Product RangeLYTSwitch-3 Series
                      Technical Datasheet

                      Data Sheet

                      TopologyBoost, Buck, Buck-Boost, Flyback
                      LED Driver TypeIsolated, Non Isolated
                      Input Voltage Min185V
                      Input Voltage Max265V
                      Output Voltage Max-
                      Output Current Max-
                      Output Current Max-
                      Switching Frequency Typ124kHz
                      IC MountingSurface Mount
                      IC Case / PackageSOIC
                      No. of Pins16Pins
                      Operating Temperature Min-40°C
                      Operating Temperature Max150°C
                      Product RangeLYTSwitch-3 Series
                      Qualification-
                      MSLMSL 3 - 168 hours
                      SVHCNo SVHC (21-Jan-2025)
                      Automotive Qualification Standard-
                      Device TopologyBoost, Buck, Buck-Boost, Flyback
                      Driver Case StyleSOIC
                      No. of Outputs1Outputs
                      Switching Frequency124kHz

                      Product Overview

                      LYTSwitch™-3 family is ideal for single-stage power factor corrected constant current LED bulbs and downlighters. Each device incorporates a high-voltage power MOSFET and discontinuous mode, variable frequency variable on-time controller. The controller also provides cycle-by-cycle current limit, output OVP, line overvoltage, comprehensive protection features, plus advanced thermal management circuitry. All LYTSwitch-3 ICs have a built-in TRIAC detector that discriminates between leading-edge and trailing-edge dimmers. This capability together with load monitoring circuitry regulates bleeder current during each switching cycle. The controller disables the bleeder circuit completely if no dimmer is detected, significantly increasing efficiency. The combination of a low-side switching topology, cooling via electronically quiet SOURCE pins and frequency jitter ensure extremely low EMI. This reduces size of input filter components, greatly reducing audible noise during dimming.

                      • Output power of 5.7W at 85-132VAC or 185-265VAC
                      • Combined single stage PFC + accurate CC output, advanced integrated TRIAC dimmer detection
                      • Design flexibility and highest reliability
                      • Less than ±3% CC regulation over line and load, power factor <gt/>0.9
                      • Ensures monotonic VA reduction with TRIAC phase angle
                      • Supports buck, buck-boost, tapped buck-boost, boost, isolated and non-isolated flyback
                      • No electrolytic bulk capacitors or optoisolators for increased lifetime
                      • Input and output overvoltage, output short-circuit/open-loop protection, advanced thermal control
                      • Selectable dimming profile increases design flexibility, fast turn-on (<lt/>500ms)
                      • Low THD, 15% typical for dimmable bulbs, as low as 7% in optimized designs

                      Technical Specifications

                      Topology

                      Boost, Buck, Buck-Boost, Flyback

                      Input Voltage Min

                      185V

                      Output Voltage Max

                      -

                      Output Current Max

                      -

                      IC Mounting

                      Surface Mount

                      No. of Pins

                      16Pins

                      Operating Temperature Max

                      150°C

                      Qualification

                      -

                      SVHC

                      No SVHC (21-Jan-2025)

                      Device Topology

                      Boost, Buck, Buck-Boost, Flyback

                      No. of Outputs

                      1Outputs

                      LED Driver Type

                      Isolated, Non Isolated

                      Input Voltage Max

                      265V

                      Output Current Max

                      -

                      Switching Frequency Typ

                      124kHz

                      IC Case / Package

                      SOIC

                      Operating Temperature Min

                      -40°C

                      Product Range

                      LYTSwitch-3 Series

                      MSL

                      MSL 3 - 168 hours

                      Automotive Qualification Standard

                      -

                      Driver Case Style

                      SOIC

                      Switching Frequency

                      124kHz
