CD421690C

Thyristor / Diode Module, Series Connected, 90 A

CD421690C - Thyristor / Diode Module, Series Connected, 90 A

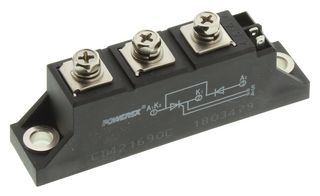

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
POWEREX POWEREX
Manufacturer Part No:
CD421690C
Newark Part No.:
58T5696
Technical Datasheet:
CD421690C   Datasheet
See all Technical Docs

Product Overview

The CD421690C is a 90A dual SCR/Diode Isolated Module designed for use in applications requiring phase control and isolated packaging. This module is isolated for easy mounting with other components on a common heat sink.
  • 1600V Vdrm/Vrrm Repetitive peak forward and reverse blocking voltage
  • Electrically isolated heat sinking
  • Compression bonded for increased power cycling capability
  • Low thermal impedance for improved current capability
  • UL recognized (E78240)
  • No additional insulation components required
  • Easy installation
  • No clamping components required
  • Reduce engineering time

Applications

Signal Processing, Motor Drive & Control, Power Management, Lighting, HVAC, Thermal Management

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Series Connected - SCR / Diode

:
1.8kV

:
100mA

:
90A

:
141A

:
2kA

:
-

:
2.5V

:
125°C

:
-

:
-
Find similar products Choose and modify the attributes above to find similar products.
