VLA539-01
IGBT Driver, 14.2 V to 15.8 V, SIP-30

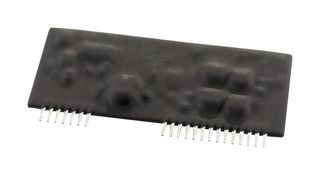

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 34 week(s)
Product Information
ManufacturerPOWEREX
Manufacturer Part NoVLA539-01
Newark Part No.90W9701
Technical Datasheet
No. of Channels-
Gate Driver Type-
Driver Configuration-
Power Switch TypeIGBT
No. of Pins30Pins
Driver Case StyleSIP
Input Type-
IC Case / PackageSIP
Source Current-
IC MountingThrough Hole
Sink Current-
Supply Voltage Min14.2V
Supply Voltage Max15.8V
Operating Temperature Min-20°C
Operating Temperature Max60°C
Input Delay0.9µs
Output Delay1µs
Qualification-
Product Range-
MSL-
SVHCTo Be Advised
Technical Specifications
No. of Channels
-
Driver Configuration
-
No. of Pins
30Pins
Input Type
-
Source Current
-
Sink Current
-
Supply Voltage Max
15.8V
Operating Temperature Max
60°C
Output Delay
1µs
Product Range
-
SVHC
To Be Advised
Gate Driver Type
-
Power Switch Type
IGBT
Driver Case Style
SIP
IC Case / Package
SIP
IC Mounting
Through Hole
Supply Voltage Min
14.2V
Operating Temperature Min
-20°C
Input Delay
0.9µs
Qualification
-
MSL
-
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
