W3224
DUAL BAND CHIP ANTENNA, 1.5754/1.6025GHZ ROHS COMPLIANT: YES

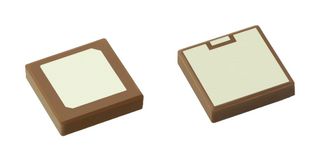

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPULSE ELECTRONICS
Manufacturer Part NoW3224
Newark Part No.
Full Reel55AK3299
Re-Reel63AK2084
Cut Tape63AK2084
Your Part Number
175 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | $8.320 | $8.32 |
| Total Price | $8.32 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | $8.320 |
| 10+ | $6.200 |
| 25+ | $6.060 |
| 50+ | $5.930 |
| 100+ | $5.580 |
| 250+ | $5.300 |
| 500+ | $5.080 |
Full Reel
| Quantity | Price |
|---|---|
| 1+ | $5.010 |
| 2000+ | $4.780 |
| 4000+ | $4.440 |
| 8000+ | $4.140 |
| 12000+ | $3.980 |
| 20000+ | $3.920 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerPULSE ELECTRONICS
Manufacturer Part NoW3224
Newark Part No.
Full Reel55AK3299
Re-Reel63AK2084
Cut Tape63AK2084
Technical Datasheet
Antenna Case Size18mm x 18mm x 4mm
Center Frequency 11.5754GHz
Center Frequency 21.6025GHz
Product Range-
SVHCNo SVHC (04-Feb-2026)
Technical Specifications
Antenna Case Size
18mm x 18mm x 4mm
Center Frequency 2
1.6025GHz
SVHC
No SVHC (04-Feb-2026)
Center Frequency 1
1.5754GHz
Product Range
-
Technical Docs (1)
Alternatives for W3224
1 Product Found
Legislation and Environmental
US ECCN:7A994
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
