PAX2S000
Strain Meter, PAX2S, Dual Line, 6 Digits, LCD, 40 to 250 Vac, 21.6 to 250 Vdc

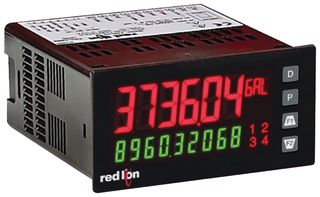

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRED LION
Manufacturer Part NoPAX2S000
Newark Part No.28W3562
Product RangePAX2 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 7 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $935.470 |
Price for:Each
Minimum: 1
Multiple: 1
$935.47
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRED LION
Manufacturer Part NoPAX2S000
Newark Part No.28W3562
Product RangePAX2 Series
Technical Datasheet
No. of Digits / Alpha6
Meter FunctionStrain Gauge / Process
Meter Range-24mV to +24mV / -240mV to +240mV
Digit Height18mm
Panel Cutout Height49.53mm
Panel Cutout Width96.52mm
Supply Voltage Min40VAC
Supply Voltage Max250VAC
Operating Temperature Min0°C
Operating Temperature Max50°C
Product RangePAX2 Series
SVHCNo SVHC (08-Jul-2021)
Technical Specifications
No. of Digits / Alpha
6
Meter Range
-24mV to +24mV / -240mV to +240mV
Panel Cutout Height
49.53mm
Supply Voltage Min
40VAC
Operating Temperature Min
0°C
Product Range
PAX2 Series
Meter Function
Strain Gauge / Process
Digit Height
18mm
Panel Cutout Width
96.52mm
Supply Voltage Max
250VAC
Operating Temperature Max
50°C
SVHC
No SVHC (08-Jul-2021)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
