CUB4L010
Counter, Miniature Electric, CUB Series, 6 Digits, Yellow, Green Backlight, Battery Powered

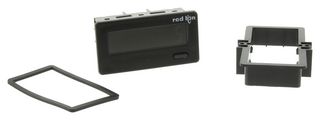

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 8 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $233.520 |
Price for:Each
Minimum: 1
Multiple: 1
$233.52
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerRED LION
Manufacturer Part NoCUB4L010
Newark Part No.50M2535
Technical Datasheet
No. of Digits / Alpha6
Digit Height12.2mm
Supply Voltage Min9VDC
Supply Voltage Max28VDC
Panel Cutout Height33mm
Panel Cutout Width68mm
Operating Temperature Min0°C
Operating Temperature Max60°C
Product Range-
SVHCNo SVHC (08-Jul-2021)
Product Overview
The CUB4L010 is a 6-digit Miniature Electronic Counter with yellow-green backlighting. It offers a large display in a miniature package. The backlight versions require power from an external 9 to 28VDC supply. The optional power supply (MLPS) is designed to be attached directly to the rear of the CUB4 and is powered from an 85 to 250VAC source. It has a lightweight, high impact plastic case with a clear viewing window. The sealed front panel with the silicone rubber reset button meets NEMA-4X/IP65 specifications for wash-down and dusty environments, when properly installed.
- Internal lithium battery provides up to 6 years of uninterrupted operation
- Front panel reset, remote reset or both
- Count speeds up to 5kHz
- Wire connection made via screw clamp type terminals
Applications
Industrial, Clock & Timing
Technical Specifications
No. of Digits / Alpha
6
Supply Voltage Min
9VDC
Panel Cutout Height
33mm
Operating Temperature Min
0°C
Product Range
-
Digit Height
12.2mm
Supply Voltage Max
28VDC
Panel Cutout Width
68mm
Operating Temperature Max
60°C
SVHC
No SVHC (08-Jul-2021)
Technical Docs (1)
Associated Products
5 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
