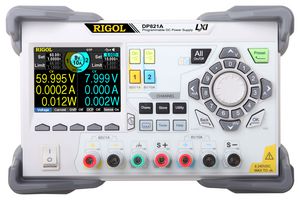

DP821A

DP821A is a DP800 series dual channel programmable linear DC power supply. The DP800 series power supply combines the ability to source, analyze, and coordinate over time on a powerful platform. Built in V, A, and W measurements make power monitoring easy. Digital triggering between instruments also makes it possible to reliably combine and connect supplies together. Intuitive to use for everything from education labs to the R & D bench, the DP800 family of power supplies provide incredible value for any application.

• 60V/1A, 8V/10A output with remote sense, total power up to 140W
• Low ripple and noise <350uVrms/2mVpp
• Excellent linear regulation rate and load regulation rate
• Fast transient response time: <50μs
• Standard OVP/OCP/OTP protection functions
• Standard timing output
• AC input (50Hz-60Hz) 100VAC ±10%, 115VAC ±10%, 230VAC ±10% (maximum 250VAC)
• 3.5-inch TFT display, 239mm(W) x 157mm(H) x 418mm(D) size
• USB host & device(standard), USB-GPIB (optional)

Contents

Programmable linear DC power supply, Power cord, USB cable, Fuse 50T-025H 250V 2.5A, short-circuit equipment, Digital I/O interface connecting terminal.
