DS1054Z
Digital Oscilloscope, DS1000Z Series, 4 Channel, 50 MHz, 1 GSPS, 24 Mpts, 7 ns

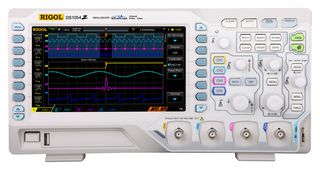

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRIGOL
Manufacturer Part NoDS1054Z
Newark Part No.03AM9648
Product RangeDS1000Z Series
Technical Datasheet
19 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $485.110 |
Price for:Each
Minimum: 1
Multiple: 1
$485.11
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRIGOL
Manufacturer Part NoDS1054Z
Newark Part No.03AM9648
Product RangeDS1000Z Series
Technical Datasheet
Product RangeDS1000Z Series
Scope Channels4 Channel
Bandwidth50MHz
Sampling Rate1GSPS
Display Memory Depth24 Mpts
Calculated Rise Time7ns
Scope Display TypeTFT LCD Color
Kit ContentsDigital Signal Oscilloscope, 150 MHz 4x Passive Probes, USB Cable, Power Cord, Quick Guide
Manufacturer Warranty3 Years
Plug Type-
SVHCTo Be Advised
Product Overview
DS1054Z is a DS1000Z series, 50MHz bandwidth digital oscilloscope. It is a high-performance and economic digital oscilloscope designed for the designing, debugging and educational requirements of the mainstream digital oscilloscope market.
- 4 analog channels digital oscilloscope
- Real-time sample rate up to 1GSa/s, memory depth up to 24Mpts
- Up to 30,000 wfms/s waveform capture rate
- Up to 60,000 frames hardware real-time waveform recording and playback functions
- Innovative "UltraVision" technology, various trigger and bus decoding functions
- Low noise floor, vertical scale range: 1mV/div to 10V/div
- Various interfaces: USB host & device, LAN (LXI), AUX
- 7inch WVGA (800x480) TFT LCD, intensity graded color display
- Width × Height × Depth = 313.1mm × 160.8mm × 122.4mm
Contents
Digital oscilloscope, Power cord conforming to the standard of the country, USB cable, 4 passive probes (150MHz), Quick guide (hard copy).
Technical Specifications
Product Range
DS1000Z Series
Bandwidth
50MHz
Display Memory Depth
24 Mpts
Scope Display Type
TFT LCD Color
Manufacturer Warranty
3 Years
SVHC
To Be Advised
Scope Channels
4 Channel
Sampling Rate
1GSPS
Calculated Rise Time
7ns
Kit Contents
Digital Signal Oscilloscope, 150 MHz 4x Passive Probes, USB Cable, Power Cord, Quick Guide
Plug Type
-
Technical Docs (1)
Legislation and Environmental
US ECCN:3A992G
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
