DS1202Z-E
Digital Oscilloscope, DS1000Z-E Series, 2 Channel, 200 MHz, 1 GSPS, 24 Mpts, 1.75 ns

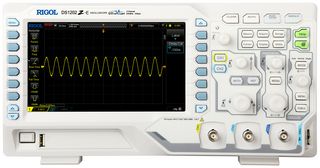

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRIGOL
Manufacturer Part NoDS1202Z-E
Newark Part No.03AM9655
Product RangeDS1000Z-E Series
Technical Datasheet
4 In Stock
6 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $471.210 |
Price for:Each
Minimum: 1
Multiple: 1
$471.21
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRIGOL
Manufacturer Part NoDS1202Z-E
Newark Part No.03AM9655
Product RangeDS1000Z-E Series
Technical Datasheet
Product RangeDS1000Z-E Series
Scope Channels2 Channel
Bandwidth200MHz
Sampling Rate1GSPS
Display Memory Depth24 Mpts
Calculated Rise Time1.75ns
Scope Display TypeTFT LCD Color
Kit ContentsDigital Signal Oscilloscope, 350 MHz 2x PVP2350 Passive Probes, USB Cable, Power Cord
Manufacturer Warranty3 Years
Plug Type-
SVHCTo Be Advised
Product Overview
DS1202Z-E is a DS1000Z-E series, 200MHz bandwidth digital oscilloscope dedicated for ecommerce sale It is a high-performance and economic digital oscilloscope designed for the designing, debugging and educational requirements of the mainstream digital oscilloscope market.
- 2 analog channel and a external trigger input channel digital oscilloscope
- Real-time sample rate up to 1GSa/s, memory depth up to 24Mpts
- Up to 30,000wfms/s waveform capture rate
- Up to 60,000 frames hardware real-time waveform recording and playback functions
- Innovative "UltraVision" technology, various trigger and bus decoding functions
- Low noise floor, vertical scale range: 500uV/div to 10V/div
- Various interfaces: USB host and device, LAN (LXI), AUX
- 7inch WVGA (800x480) TFT LCD, intensity graded color display
- Width x height x depth = 12.32inch x 6.33inch x 4.81inch
Contents
Digital oscilloscope, Power cord conforming to the standard of the country, USB cable, 2 passive probes (350MHz), Quick guide (hard copy).
Technical Specifications
Product Range
DS1000Z-E Series
Bandwidth
200MHz
Display Memory Depth
24 Mpts
Scope Display Type
TFT LCD Color
Manufacturer Warranty
3 Years
SVHC
To Be Advised
Scope Channels
2 Channel
Sampling Rate
1GSPS
Calculated Rise Time
1.75ns
Kit Contents
Digital Signal Oscilloscope, 350 MHz 2x PVP2350 Passive Probes, USB Cable, Power Cord
Plug Type
-
Technical Docs (1)
Legislation and Environmental
US ECCN:3A992G
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
