DSA815-TG
Spectrum Analyzer, w/ Tracking Generator, Bench, DSA800 Series, 9kHz to 1.5GHz, 178.8 mm, 361.6 mm

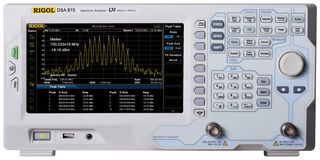

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | RIGOL |
|---|---|
| Manufacturer Part No | DSA815-TGCopy |
| Manufacturer Standard Lead Time | 10 weeks |
| Newark Part No. | 03AM9608 |
| Product Range | DSA800 Series |
| Your Part Number | |
| Technical Datasheet |
25 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 1+ | $1,388.610 |
Price for:Each
Minimum: 1
Multiple: 1
$1,388.61
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RIGOL |
|---|---|
| Manufacturer Part No | DSA815-TGCopy |
| Manufacturer Standard Lead Time | 10 weeks |
| Newark Part No. | 03AM9608 |
| Product Range | DSA800 Series |
| Technical Datasheet | |
| Spectrum Analyzer Type | Bench |
| Product Range | DSA800 Series |
| Test Frequency Range | 9kHz to 1.5GHz |
| External Height | 178.8mm |
| External Width | 361.6mm |
| External Depth | 128mm |
| Weight | 4.25kg |
| Manufacturer Warranty | 3 Years |
| Plug Type | - |
| SVHC | To Be Advised |
Product Overview
DSA815-TG is a DSA800 series spectrum analyzer with tracking generator, factory installed. DSA800 family features a widescreen display, compact design, and easy-to-use interface making it ideal for benchtop or field apps in RF and wireless testing and production. The spectrum analyzer offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels.
- Frequency range from 9kHz to 1.5GHz, minimum resolution bandwidth (RBW) of 10Hz
- Maximum CW RF power of 20dBm (100mW)
- SSB phase noise (at 10kHz offset) is <lt/>-80dBc/Hz
- Level measurement uncertainty <lt/>1.5dB (nominal)
- EMI filter & quasi-peak detector kit (optional), VSWR measurement kit (optional)
- Advanced measurement functions(optional)
- 8inch TFT LCD (800x480) display
- Complete connectivity: LAN (LXI), USB host & device, GPIB (option)
- Dimension is (W x H x D) 14.2in × 7.0in × 5.0in
- Operating temperature range 0℃ to 50℃
Contents
Spectrum analyzer with tracking generator, Power cable, Quick guide (hard copy).
