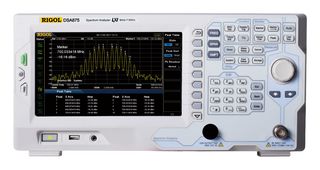

DSA875

DSA875 is a DSA800 series spectrum analyzer. DSA800 family features a widescreen display, compact design, and easy-to-use interface making it ideal for benchtop or field apps in RF and wireless testing and production. The spectrum analyzer offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels.

• Frequency range from 9kHz to 7.5GHz, minimum resolution bandwidth (RBW) of 10Hz
• Maximum CW RF power of 20dBm (100mW)
• SSB phase noise (at 10kHz offset) is <lt/>-98dBc/Hz
• Level measurement uncertainty <lt/>0.8dB (nominal)
• EMI filter & quasi-peak detector kit (optional), VSWR measurement kit (optional)
• Advanced measurement functions(optional)
• 8inch TFT LCD (800x480) display
• Complete connectivity: LAN (LXI), USB host & device, GPIB (option)
• Dimension is (W x H x D) 14.2in × 7.0in × 5.0in
• Operating temperature range 0℃ to 50℃

Contents

Spectrum analyzer, Power cable, Quick guide (hard copy).
