DSG821
RF Signal Generator, 9 kHz to 2.1 GHz, RF, DSG800 Series, AM, FM, PM, Pulse, 3 Years

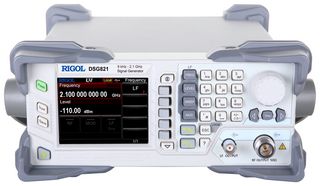

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | RIGOL |
|---|---|
| Manufacturer Part No | DSG821Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Newark Part No. | 03AM9638 |
| Product Range | DSG800 Series |
| Your Part Number | |
| Technical Datasheet |
1 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 1+ | $3,195.610 |
Price for:Each
Minimum: 1
Multiple: 1
$3,195.61
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RIGOL |
|---|---|
| Manufacturer Part No | DSG821Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Newark Part No. | 03AM9638 |
| Product Range | DSG800 Series |
| Technical Datasheet | |
| Signal Generator Type | RF |
| Bandwidth | - |
| No. of Channels | - |
| Product Range | DSG800 Series |
| Signal Generator Modulation | AM, FM, PM, Pulse |
| Manufacturer Warranty | 3 Years |
| Plug Type | - |
| SVHC | To Be Advised |
Product Overview
DSG821 is a DSG800 series RF signal generator. The instruments provide maximum output power up to +20dBm and low SSB phase noise -112dBc/Hz, amplitude accuracy of +/- 0.5dB, and frequency resolution of 0.01Hz at any frequency. An oven-controlled crystal oscillator time-base option provides lesser than 5ppb temperature stability and lesser than 30ppb/year aging stability, the most accurate and stable time base available in this class. For IoT and RF applications from design to debug the DSG800 series provides uncompromised RF signal generation capabilities at an unprecedented value.
- Frequency range from 9kHz to 2.1GHz
- Flexible frequency and amplitude sweep functions
- Complete AM/FM/ØM analog modulation functions
- Standard LF output function, powerful pulse modulation function
- Open vector modulation function, system flatness calibration function
- Simple and easy to operate
- USB host, USB device, LAN interface
- 3.5" TFT LCD display
- Input voltage range from 100V to 240VAC (nominal)
- Dimension is (W × H × D) 10.30inch × 4.41inch × 12.54inch
Contents
RF signal generator, Power cable, Quick guide (hard copy).
Technical Specifications
| Signal Generator Type | RF |
|---|---|
| No. of Channels | - |
| Signal Generator Modulation | AM, FM, PM, Pulse |
| Plug Type | - |
| Bandwidth | - |
|---|---|
| Product Range | DSG800 Series |
| Manufacturer Warranty | 3 Years |
| SVHC | To Be Advised |
