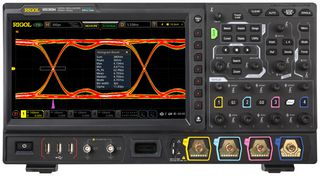

MSO8064

MSO8064 is a MSO8000 series 600MHz digital oscilloscope adopts RIGOL's self-developed "Phoenix" technical platform, which can deliver up to 10GSa/s sample rate, realizing the high integration of all the function modules required for the analog front-end (AFE), and greatly improving the consistency and reliability of the digital oscilloscope. The innovative UltraVision II platform makes the digital oscilloscope deliver a high waveform capture rate, full digital trigger technology, and full memory hardware measurement technology. The MSO8000 series digital oscilloscope also integrates other instrument modules, such as MSO, AWG, digital voltmeter, 6-digit counter and totalizer, and protocol analyzer.

• 4 input analog channels, 1 input EXT channel, 16 input digital channels
• Up to 500Mpts memory depth
• High waveform capture rate (over 600,000 wfm/s)
• Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback
• 10.1" capacitive multi-touch screen, 256-level intensity grading display, with color persistence
• Web control remote command supported
• Auto measurement of 41 waveform parameters; full-memory hardware measurement function
• Waveform histogram analysis (standard)
• Power voltage range from 100V-240V, 45Hz-440Hz
• Dimension is 16.14" (W) × 8.82"(H) × 5.31" (D)

Contents

MSO, Power cord conforming to the standard of the destination country, USB cable, Passive HighZ Probes x4 (500MHz), Front panel cover.
