NGP824COMB

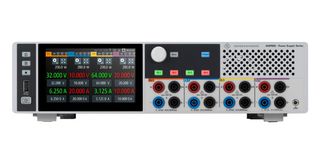

Bench Power Supply, Adjustable, 4 Output, 0 V, 64 V, 10 A
Image is for illustrative purposes only. Please refer to product description.
ManufacturerROHDE & SCHWARZ
Manufacturer Part NoNGP824COMB
Newark Part No.24AK5689
Product RangeNGP800 Series
Technical Datasheet
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $8,923.800 |
Price for:Each
Minimum: 1
Multiple: 1
$8,923.80
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerROHDE & SCHWARZ
Manufacturer Part NoNGP824COMB
Newark Part No.24AK5689
Product RangeNGP800 Series
Technical Datasheet
Power Supply Output TypeAdjustable
No. of Outputs4 Output
Output Voltage Min0V
Output Voltage Max64V
Output Current Min-
Output Current Max10A
Power Rating800W
Supply Voltage Min100VAC
Supply Voltage Max250VAC
Manufacturer Warranty3 Years
Product RangeNGP800 Series
Plug Type-
SVHCTo Be Advised
Product Overview
NGP824COMB is a package containing NGP824 power supply and K103: digital trigger I/O, K107: analogue input. NGP824 is a 800W 64V/10A four-channel power supply. Electrically equivalent and galvanically isolated outputs can be wired in series or parallel for up to 250V. It includes remote sense terminals, USB and a LAN interface, user-installable GPIB interface, a digital trigger I/O, an analogue input and a wireless LAN interface.
- 5" high-resolution touch display
- Overcurrent protection (OCP), overvoltage protection (OVP) and overpower protection (OPP)
- Built in measurements and data logging
- Extensive protection and safety features
- Ramp function and output delay
- Industry standard SCPI commands
- Built in measurements and data logging
- Industry standard SCPI commands
- Extensive protection and safety features
Contents
Four-channel power supply, K103 digital trigger I/O, K107 analogue input, Set of power cables, Terminal blocks, Quick start guide.
Technical Specifications
Power Supply Output Type
Adjustable
Output Voltage Min
0V
Output Current Min
-
Power Rating
800W
Supply Voltage Max
250VAC
Product Range
NGP800 Series
SVHC
To Be Advised
No. of Outputs
4 Output
Output Voltage Max
64V
Output Current Max
10A
Supply Voltage Min
100VAC
Manufacturer Warranty
3 Years
Plug Type
-
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
