ZNLE3-COMP05
Vector Network Analyzer, w/ZNLE-B100 & ZN-135, PC Based, 1MHz to 3GHz, 3 Years, ZNLE Series

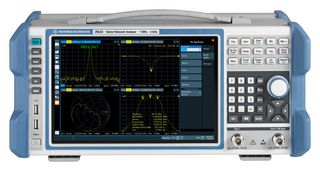

Image is for illustrative purposes only. Please refer to product description.
ManufacturerROHDE & SCHWARZ
Manufacturer Part NoZNLE3-COMP05
Newark Part No.83AH3270
Product RangeZNLE Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 5 week(s)
| Quantity | Price |
|---|---|
| 1+ | $26,451.700 |
Price for:Each
Minimum: 1
Multiple: 1
$26,451.70
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerROHDE & SCHWARZ
Manufacturer Part NoZNLE3-COMP05
Newark Part No.83AH3270
Product RangeZNLE Series
Technical Datasheet
Vector Network Analyzer TypePC Based
Test Frequency Range1MHz to 3GHz
Sensitivity dBm-
Manufacturer Warranty3 Years
Product RangeZNLE Series
Plug Type-
SVHCTo Be Advised
Product Overview
ZNLE3-COMP05 is a two-port vector network analyser (VNA) bundle. VNA can be used for bidirectional measurements of S-parameters S11, S21, S12 and S22 on passive components. It is a more modern VNA than the E5063A, using Windows 10 as an operating system with the look and feel of this modern platform. It incorporates modern features such as multi-touch capability.
- Frequency 1MHz to 3GHz
- Standalone vector network analyser with fast measurement speeds and low trace noise
- Wide 10.1" WXGA capacitive touchscreen for convenient configuration with multitouch gesturing
- Undo/redo soft keys and fully integrated context sensitive help menu for user-friendly operation
- De/embedding, fixture compensation, automatic calibration units and remote control via LAN or GPIB
Technical Specifications
Vector Network Analyzer Type
PC Based
Sensitivity dBm
-
Product Range
ZNLE Series
SVHC
To Be Advised
Test Frequency Range
1MHz to 3GHz
Manufacturer Warranty
3 Years
Plug Type
-
Associated Products
6 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
