BM2P016T-Z
AC/DC CONV, FLYBACK, -40 TO 105DEG C

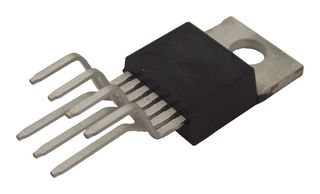

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 33 week(s)
| Quantity | Price |
|---|---|
| 1+ | $6.760 |
| 10+ | $5.150 |
| 25+ | $4.880 |
| 50+ | $4.620 |
| 100+ | $4.450 |
| 476+ | $4.290 |
| 714+ | $4.050 |
Price for:Each
Minimum: 1
Multiple: 1
$6.76
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerROHM
Manufacturer Part NoBM2P016T-Z
Newark Part No.01AH6790
Technical Datasheet
Input Voltage Min90VAC
Input Voltage AC Min90V
Input Voltage Max264VAC
Input Voltage AC Max264V
IC Case / PackageTO-220
AC / DC Converter Case StyleTO-220
No. of Pins7Pins
Power Rating-
Power Rating Max-
TopologyFlyback
IsolationIsolated, Non Isolated
Power Switch Voltage Rating650V
Power Switch Current Rating-
Switching Frequency65kHz
IC MountingThrough Hole
Operating Temperature Min-40°C
Operating Temperature Max105°C
Product Range-
Qualification-
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
Input Voltage Min
90VAC
Input Voltage Max
264VAC
IC Case / Package
TO-220
No. of Pins
7Pins
Power Rating Max
-
Isolation
Isolated, Non Isolated
Power Switch Current Rating
-
IC Mounting
Through Hole
Operating Temperature Max
105°C
Qualification
-
SVHC
No SVHC (25-Jun-2025)
Input Voltage AC Min
90V
Input Voltage AC Max
264V
AC / DC Converter Case Style
TO-220
Power Rating
-
Topology
Flyback
Power Switch Voltage Rating
650V
Switching Frequency
65kHz
Operating Temperature Min
-40°C
Product Range
-
MSL
MSL 1 - Unlimited
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
