RE906
SMD-ADAPTOR, PCB, FR4, SC70, SOT23,

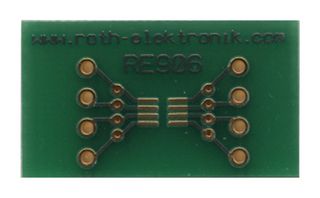

Image is for illustrative purposes only. Please refer to product description.
ManufacturerROTH ELEKTRONIK
Manufacturer Part NoRE906Copy
Manufacturer Standard Lead Time4 weeks
Newark Part No.15R2331
Your Part Number
5 In Stock
Need more?
Delivery in 4-6 Business Days(UK stock)
Order before 6pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $19.300 |
| 50+ | $17.550 |
| 100+ | $16.340 |
| 250+ | $15.170 |
| 500+ | $14.280 |
Price for:Each
Minimum: 1
Multiple: 1
$19.30
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerROTH ELEKTRONIK
Manufacturer Part NoRE906Copy
Manufacturer Standard Lead Time4 weeks
Newark Part No.15R2331
Technical Datasheet
Convert From-
Convert To-
Pitch Spacing2.54mm
Row Pitch12.7mm
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
- Epoxy fiber-glass FR4 1.50mm IC adaptor
- Double-sided is 35µm Cu
- Plated through holes (PTH)
- Surface chem. Ni/Au with solder stop mask
- Adaption circuit board with 2 x 4 soldering pads for SC70, SOT23 (pitch 0.65mm)
- Suitable for 2.54mm grid (hole dia 1.00mm) and 1.27mm grid (hole dia 0.30mm)
- Size is 0.531 x 0.92inch
Technical Specifications
Convert From
-
Pitch Spacing
2.54mm
Product Range
-
Convert To
-
Row Pitch
12.7mm
SVHC
No SVHC (27-Jun-2024)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
