SKKT 27/12 E
Thyristor, 1.2 kV, 25 A, 50 A, Module, 7

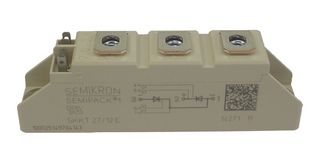

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSEMIKRON
Manufacturer Part NoSKKT 27/12 ECopy
Manufacturer Standard Lead Time25 weeks
Newark Part No.55X3169
Your Part Number
20 In Stock
60 more incoming. You can reserve stock now
Delivery in 4-6 Business Days(UK stock)
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $50.850 |
| 5+ | $48.230 |
| 10+ | $45.600 |
| 25+ | $42.910 |
| 50+ | $40.030 |
| 100+ | $39.160 |
| 250+ | $37.880 |
Price for:Each
Minimum: 1
Multiple: 1
$50.85
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSEMIKRON
Manufacturer Part NoSKKT 27/12 ECopy
Manufacturer Standard Lead Time25 weeks
Newark Part No.55X3169
Technical Datasheet
SCR Module TypeSeries Connected - SCRs
Peak Repetitive Off State Voltage1.2kV
Gate Trigger Current Max-
Average On State Current25A
Average Forward Current25A
On State RMS Current50A
Gate Trigger Voltage Max-
Peak Non Repetitive Surge Current550A
Operating Temperature Max125°C
Holding Current Max200mA
Repetitive Peak Reverse Voltage1.2kV
Repetitive Peak Reverse Voltage1.2kV
Thyristor Case StyleModule
No. of Pins7Pins
Thyristor MountingPanel
Product Range-
SVHCNo SVHC (15-Jun-2015)
Technical Specifications
SCR Module Type
Series Connected - SCRs
Gate Trigger Current Max
-
Average Forward Current
25A
Gate Trigger Voltage Max
-
Operating Temperature Max
125°C
Repetitive Peak Reverse Voltage
1.2kV
Thyristor Case Style
Module
Thyristor Mounting
Panel
SVHC
No SVHC (15-Jun-2015)
Peak Repetitive Off State Voltage
1.2kV
Average On State Current
25A
On State RMS Current
50A
Peak Non Repetitive Surge Current
550A
Holding Current Max
200mA
Repetitive Peak Reverse Voltage
1.2kV
No. of Pins
7Pins
Product Range
-
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jun-2015)
