1520-3
Variable, Manually Operated & Motor Driven, Three Phase, 50Hz / 60Hz, 480V, 560V

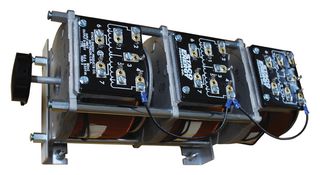

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | STACO ENERGY PRODUCTS |
|---|---|
| Manufacturer Part No | 1520-3Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Newark Part No. | 02F1095 |
| Product Range | 1500 Series |
| Your Part Number | |
| Technical Datasheet |
13 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 1+ | $5,256.580 |
| 5+ | $5,151.450 |
| 10+ | $5,046.310 |
| 25+ | $4,941.190 |
| 50+ | $4,836.050 |
Price for:Each
Minimum: 1
Multiple: 1
$5,256.58
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | STACO ENERGY PRODUCTS |
|---|---|
| Manufacturer Part No | 1520-3Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Newark Part No. | 02F1095 |
| Product Range | 1500 Series |
| Technical Datasheet | |
| Input Voltage | 480V |
| Transformer Type | Manually Operated & Motor Driven |
| Construction Type | - |
| Output Voltage | 560VAC |
| No. of Phases | Three Phase |
| Frequency Range | 50Hz / 60Hz |
| Input Voltage | 480V |
| Output Voltage | 560V |
| Output Current | - |
| Constant Current Load | 9.5A |
| Knob Rotation | CCW, CW |
| Transformer Mounting | Panel Mount |
| Product Range | 1500 Series |
| SVHC | To Be Advised |
Product Overview
The 1520-3 is a 9.5A 480V three-phase wye Variable Transformer with clockwise and counter clockwise shaft rotation for voltage increase. This transformer is highly reliable, dependable and accurate AC control devices, they can be operated at frequencies between 50 and 2000Hz with derating at higher than rated frequency, the shaft is fully adjustable and can be extended from either end for general utility mounting.
- Uncased model
Applications
Power Management
Technical Specifications
| Input Voltage | 480V |
|---|---|
| Construction Type | - |
| No. of Phases | Three Phase |
| Input Voltage | 480V |
| Output Current | - |
| Knob Rotation | CCW, CW |
| Product Range | 1500 Series |
| Transformer Type | Manually Operated & Motor Driven |
|---|---|
| Output Voltage | 560VAC |
| Frequency Range | 50Hz / 60Hz |
| Output Voltage | 560V |
| Constant Current Load | 9.5A |
| Transformer Mounting | Panel Mount |
| SVHC | To Be Advised |
Technical Docs (1)
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
