02540.1-10

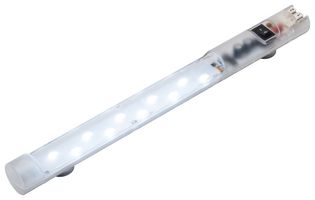

The 02540.1-10 from Stego is a LED 025 series Ecoline light. It is suitable for all types of panels and enclosures, especially where space is at a premium. This light has a very long service life due to the use of LED technology. The Ecoline series is a simplified version of the standard LED 025 light and has a dual cage clamp for connection instead of connectors. It is suitable for daisy-chaining and allows for up to 10 lights to be connected to each other. Available with magnet mount for easy positioning in any steel cabinet or enclosure.

• On/off light switch
• Operating voltage range from 24VDC to 48VDC (minimum 20VDC, maximum 60VDC)
• UL file no. E234324, VDE (REG.Nr. EAC E788) approvals
• Maximum power consumption of 5W (approximately 75W incandescent bulb)
• Luminosity is 400lm at 120° (1200lm at 360° or equivalent 95W light bulb)
• 120° angle of radiation LED (daylight, 6000K to 7000K colour temperature)
• 60,000hours at 68°F (20°C) service life
• 2 pole dual cage clamp for 14AWG solid wire, 16AWG stranded wire (wire end ferrule) connection
• Plastic transparent housing, II (double insulated) protection class, IP20 protection type
• Weight is 7oz (200g), operating temperature range from -22°F to +140°F (-30°C to +60°C)

Applications

LED Lighting

Notes

The light is not approved for household lighting.
