STGIB8CH60TS-E
IPM MODULE, IGBT, 3-PH, 12A, 600V, DIP

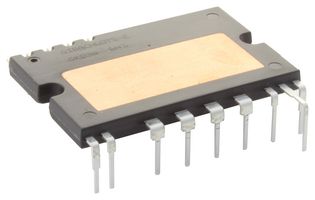

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTGIB8CH60TS-ECopy
Newark Part No.22AC8564
Product RangeSLLIMM-2nd Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 24 week(s)
| Quantity | Price |
|---|---|
| 1+ | $20.170 |
| 10+ | $15.060 |
| 26+ | $13.870 |
| 52+ | $12.700 |
| 104+ | $11.570 |
Price for:Each
Minimum: 1
Multiple: 1
$20.17
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTGIB8CH60TS-ECopy
Newark Part No.22AC8564
Product RangeSLLIMM-2nd Series
Technical Datasheet
IPM Power DeviceIGBT
Voltage Rating (Vces / Vdss)600V
Current Rating (Ic / Id)12A
Isolation Voltage1.5kV
IPM Case StyleDIP
IPM SeriesSLLIMM
Product RangeSLLIMM-2nd Series
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
IPM Power Device
IGBT
Current Rating (Ic / Id)
12A
IPM Case Style
DIP
Product Range
SLLIMM-2nd Series
Voltage Rating (Vces / Vdss)
600V
Isolation Voltage
1.5kV
IPM Series
SLLIMM
SVHC
No SVHC (25-Jun-2025)
Technical Docs (2)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
