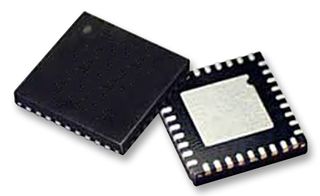

STM32F103T8U6

The STM32F103T8U6 is a 32-bit medium-density performance line Microcontroller Unit offers two 12-bit ADCs and 3 general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces up to two I²Cs and SPIs, three USARTs, an USB and a CAN. It incorporates the high performance ARM® Cortex®-M3 32bit RISC core operating at a 72MHz frequency, high-speed embedded memories and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The 36-pin general-purpose microcontroller unit (MCU) feature 64kB flash memory.

• POR, PDR and programmable voltage detector
• PLL for CPU clock
• Low power - Sleep, stop and standby modes
• VBAT supply for RTC and backup registers
• Dual-sample and hold capability
• Debug mode - Serial wire debug (SWD) and JTAG interfaces
• 2 Watchdog timers
• SysTick timer - 24-bit down counter
• CRC calculation unit, 96-bit unique ID

Applications

Motor Drive & Control, Portable Devices, Medical, Consumer Electronics, Computers & Computer Peripherals, Communications & Networking, Industrial, Security, Imaging, Video & Vision, HVAC
