21
Variable, Manually Operated, Open, Single Phase, 50Hz / 60Hz, 120V, 140V

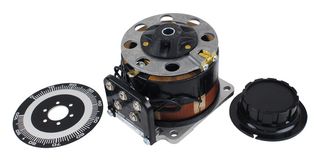

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | SUPERIOR ELECTRIC |
|---|---|
| Manufacturer Part No | 21Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Newark Part No. | 32M1443 |
| Product Range | POWERSTAT Series |
| Your Part Number | |
| Technical Datasheet |
259 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 1+ | $852.400 |
| 5+ | $803.780 |
| 10+ | $767.580 |
| 25+ | $722.580 |
| 50+ | $675.020 |
Price for:Each
Minimum: 1
Multiple: 1
$852.40
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | SUPERIOR ELECTRIC |
|---|---|
| Manufacturer Part No | 21Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Newark Part No. | 32M1443 |
| Product Range | POWERSTAT Series |
| Technical Datasheet | |
| Transformer Type | Manually Operated |
| Input Voltage | 120VAC |
| Construction Type | Open |
| No. of Phases | Single Phase |
| Output Voltage | 140VAC |
| Frequency Range | 50Hz / 60Hz |
| Input Voltage | 120V |
| Output Voltage | 140V |
| Output Current | - |
| Constant Current Load | 5A |
| Knob Rotation | CCW, CW |
| Transformer Mounting | Surface Mount |
| Product Range | POWERSTAT Series |
| SVHC | No SVHC (27-Jun-2018) |
Product Overview
21 is a 1-phase, 120V, POWERSTAT series variable transformer with open construction which is primarily designed for back-of-panel mounting. The rated output for the Type 21 Series is 5A for constant current loads. The 21 Series types operate from 120V lines. The tapping arrangement permits an output voltage range of zero to line voltage or zero to 17% above line voltage and can be operated at any frequency between 50 and 2000Hz without reduction in allowable output current.
- Clockwise and counter clock wise knob rotation
- Manually operated unit has 3 3/4inch dial graduated 0-100
- Angle of rotation of 320° from 0 to maximum output voltage
Technical Specifications
| Transformer Type | Manually Operated |
|---|---|
| Construction Type | Open |
| Output Voltage | 140VAC |
| Input Voltage | 120V |
| Output Current | - |
| Knob Rotation | CCW, CW |
| Product Range | POWERSTAT Series |
| Input Voltage | 120VAC |
|---|---|
| No. of Phases | Single Phase |
| Frequency Range | 50Hz / 60Hz |
| Output Voltage | 140V |
| Constant Current Load | 5A |
| Transformer Mounting | Surface Mount |
| SVHC | No SVHC (27-Jun-2018) |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (27-Jun-2018) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Product traceability |
