933
Pushbutton Switch, 6.4 mm, SPDT, Momentary, Round, Black

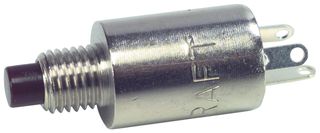

Image is for illustrative purposes only. Please refer to product description.
Available to Order by Phone
Please contact us for latest stock details.
Product Information
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part No933
Newark Part No.22F235
Technical Datasheet
Product Range-
Pushbutton Switch TypeStandard
Panel Cutout Diameter6.4mm
Contact ConfigurationSPDT
Switch OperationMomentary
Pushbutton Actuator StyleRound
Contact Current Max250mA
Actuator / Cap ColourBlack
Contact Current AC Max250mA
Contact Voltage VAC125V
Contact Current DC Max250mA
Contact Voltage VDC48V
IP Rating-
Switch MountingPanel Mount
Switch TerminalsSolder Lug
Illumination ColorNon Illuminated
Panel Cutout (H x W)-
SVHCNo SVHC (17-Jan-2022)
Product Overview
The 933 series Momentary Pushbutton Switch, completely enclosed in rugged metal housing. Front or rear panel mount types offer 1-A, 1-B, 1-C or 1-D switching. Red or black pushbuttons and solder terminals are standard.
- Copper alloy-plated body
- Moulded red or black plastic and integral with shaft
- Made in the USA
Applications
Industrial
Technical Specifications
Product Range
-
Panel Cutout Diameter
6.4mm
Switch Operation
Momentary
Contact Current Max
250mA
Contact Current AC Max
250mA
Contact Current DC Max
250mA
IP Rating
-
Switch Terminals
Solder Lug
Panel Cutout (H x W)
-
Pushbutton Switch Type
Standard
Contact Configuration
SPDT
Pushbutton Actuator Style
Round
Actuator / Cap Colour
Black
Contact Voltage VAC
125V
Contact Voltage VDC
48V
Switch Mounting
Panel Mount
Illumination Color
Non Illuminated
SVHC
No SVHC (17-Jan-2022)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
