EP913S14

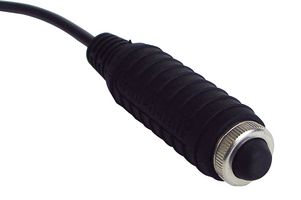

Pushbutton Switch, EP900S Sealed Series, SPDT, Momentary, Round, Black
Image is for illustrative purposes only. Please refer to product description.
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part NoEP913S14Copy
Manufacturer Standard Lead Time9 weeks
Newark Part No.53Y2137
Product RangeEP900S Sealed Series
Your Part Number
201 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 1+ | $33.800 |
| 5+ | $31.100 |
| 10+ | $28.730 |
| 25+ | $26.030 |
| 50+ | $25.500 |
| 100+ | $24.990 |
| 250+ | $24.470 |
| 5000+ | $23.940 |
Price for:Each
Minimum: 1
Multiple: 1
$33.80
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part NoEP913S14Copy
Manufacturer Standard Lead Time9 weeks
Newark Part No.53Y2137
Product RangeEP900S Sealed Series
Technical Datasheet
Pushbutton Switch TypeStandard
Product RangeEP900S Sealed Series
Panel Cutout Diameter-
Contact ConfigurationSPDT
Switch OperationMomentary
Pushbutton Actuator StyleRound
Contact Current AC Max250mA
Actuator / Cap ColourBlack
Contact Voltage VAC125V
Contact Current DC Max250mA
Contact Voltage VDC48V
IP RatingIP67
Switch MountingFree Hanging
Switch TerminalsSolder Lug
Illumination ColorNon Illuminated
Panel Cutout (H x W)-
SVHCNo SVHC (17-Jan-2022)
Product Overview
- Made in the USA
Technical Specifications
Pushbutton Switch Type
Standard
Panel Cutout Diameter
-
Switch Operation
Momentary
Contact Current AC Max
250mA
Contact Voltage VAC
125V
Contact Voltage VDC
48V
Switch Mounting
Free Hanging
Illumination Color
Non Illuminated
SVHC
No SVHC (17-Jan-2022)
Product Range
EP900S Sealed Series
Contact Configuration
SPDT
Pushbutton Actuator Style
Round
Actuator / Cap Colour
Black
Contact Current DC Max
250mA
IP Rating
IP67
Switch Terminals
Solder Lug
Panel Cutout (H x W)
-
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
