1586055-1

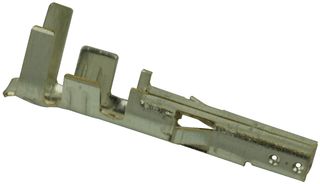

Contact, VAL-U-LOK Series, Socket, Crimp, 16 AWG, Tin Plated Contacts, VAL-U-LOK Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part No1586055-1Copy
Manufacturer Standard Lead Time17 weeks
Newark Part No.51M8538
Product RangeVAL-U-LOK Series
Your Part Number
8,474 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 1+ | $0.150 |
| 25+ | $0.101 |
| 50+ | $0.092 |
| 100+ | $0.085 |
| 500+ | $0.076 |
| 1000+ | $0.072 |
| 5000+ | $0.071 |
| 10000+ | $0.070 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.15
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part No1586055-1Copy
Manufacturer Standard Lead Time17 weeks
Newark Part No.51M8538
Product RangeVAL-U-LOK Series
Technical Datasheet
Product RangeVAL-U-LOK Series
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max16AWG
Contact PlatingTin Plated Contacts
For Use WithVAL-U-LOK Series
Wire Size AWG Min16AWG
Contact MaterialBrass
SVHCNo SVHC (04-Feb-2026)
Product Overview
The 1586055-1 is a 16AWG Socket Crimp Contact made of brass base material with pre-tin-plating on contact mating area, termination area and contact crimp area. It is used for wire-to-board and wire-to-wire VAL-U-LOK connector system.
- 600VAC Operating voltage
- 9A Current rating
- -40 to 105°C Operating temperature range
Applications
Industrial
Technical Specifications
Product Range
VAL-U-LOK Series
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
16AWG
SVHC
No SVHC (04-Feb-2026)
Contact Gender
Socket
Wire Size AWG Max
16AWG
For Use With
VAL-U-LOK Series
Contact Material
Brass
Alternatives for 1586055-1
2 Products Found
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
