Print Page
T4111012081-000

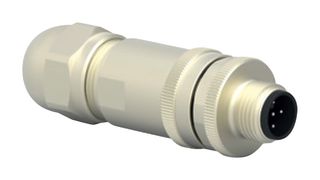

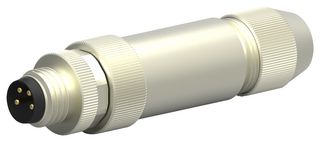

Sensor Connector, PG9/6-8mm, M12, Male, 8 Positions, Screw Pin, Straight Cable Mount
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part NoT4111012081-000Copy
Manufacturer Standard Lead Time10 weeks
Newark Part No.97Y2348
Your Part Number
689 In Stock
400 more incoming. You can reserve stock now
Delivery in 4-6 Business Days(UK stock)
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $25.300 |
| 5+ | $23.620 |
| 10+ | $21.930 |
| 25+ | $20.750 |
| 50+ | $19.900 |
| 100+ | $19.100 |
| 250+ | $18.080 |
Price for:Each
Minimum: 1
Multiple: 1
$25.30
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part NoT4111012081-000Copy
Manufacturer Standard Lead Time10 weeks
Newark Part No.97Y2348
Technical Datasheet
Product Range-
Sensor Connector SizeM12
Sensor Connector GenderMale
No. of Positions8 Positions
No. of Positions8 Positions
Sensor Contact TypeScrew Pin
Sensor Contact TypeScrew Pin
Sensor Connector MountingStraight Cable Mount
IP / NEMA RatingIP67
Connector CodingA Coded
Connector Body MaterialBrass Body
Connector Body MaterialBrass Body
Contact MaterialBrass
Contact MaterialBrass
Contact PlatingGold
Contact PlatingGold
Current Rating2A
Voltage Rating30V
SVHCLead (04-Feb-2026)
Product Overview
The T4111012081-000 from TE Connectivity is aM12, straight male, A code, PG9, standard circular connector. This connector has metal shell type with 20 shell size, copper alloy shell and PA66+GF25 insulation material.
- 8 position plug
- Nickel shell plating, sealed and preloaded plug
- 250Vrms voltage
- IP water sealing level IP67
- Keyed mating alignment type, 45° alignment keyed
- Wire/cable size of 18AWG - 24AWG
- UL flammability rating UL 94V-0
Applications
Industrial
Technical Specifications
Product Range
-
Sensor Connector Gender
Male
No. of Positions
8 Positions
Sensor Contact Type
Screw Pin
IP / NEMA Rating
IP67
Connector Body Material
Brass Body
Contact Material
Brass
Contact Plating
Gold
Current Rating
2A
SVHC
Lead (04-Feb-2026)
Sensor Connector Size
M12
No. of Positions
8 Positions
Sensor Contact Type
Screw Pin
Sensor Connector Mounting
Straight Cable Mount
Connector Coding
A Coded
Connector Body Material
Brass Body
Contact Material
Brass
Contact Plating
Gold
Voltage Rating
30V
Alternatives for T4111012081-000
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (04-Feb-2026)
